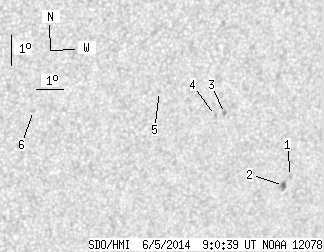

SDO HMI 2014-06-05 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 9.86 | 0.88 | 6.13 | -19.64 | 332.12 | 32.19 | 236.17 | 0.6040 | 564.8 | 396.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-05 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.53 | -20.79 | 335.48 | 35.56 | 237.01 | 0.6504 | 669.0 | 523.0 | |
| 1.36 | 3.17 | 0.88 | 2.06 | -21.08 | 335.28 | 35.35 | 236.47 | 0.6499 | 815.1 | 585.1 | |
| 0.00 | 2.08 | 0.00 | 1.29 | -18.75 | 332.41 | 32.48 | 237.87 | 0.6027 | 793.0 | 667.9 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -18.82 | 332.08 | 32.15 | 237.54 | 0.5992 | 843.0 | 722.1 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -18.05 | 329.83 | 29.90 | 237.01 | 0.5672 | 804.0 | 662.3 | |
| 0.00 | 1.90 | 0.00 | 1.10 | -18.65 | 325.37 | 25.44 | 232.03 | 0.5182 | -505.0 | -497.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
