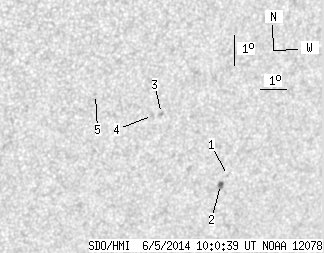

SDO HMI 2014-06-05 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 10.04 | 1.24 | 6.39 | -19.82 | 333.51 | 34.13 | 237.44 | 0.6280 | 711.5 | 549.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-05 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.47 | -20.76 | 335.49 | 36.11 | 237.40 | 0.6564 | 567.0 | 488.0 | |
| 1.90 | 4.07 | 1.24 | 2.67 | -21.05 | 335.29 | 35.91 | 236.87 | 0.6559 | 772.0 | 521.3 | |
| 0.00 | 1.81 | 0.00 | 1.13 | -18.75 | 332.40 | 33.02 | 238.24 | 0.6090 | 757.0 | 671.4 | |
| 0.00 | 2.44 | 0.00 | 1.52 | -18.81 | 332.07 | 32.69 | 237.92 | 0.6055 | 681.0 | 470.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -18.14 | 329.78 | 30.40 | 237.26 | 0.5739 | 766.0 | 631.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
