SDO HMI 2014-06-05 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 9.59 | 0.90 | 6.18 | -20.06 | 333.95 | 35.12 | 237.71 | 0.6408 | 507.5 | 538.2 | |
|
previous
or next observation for the same group /

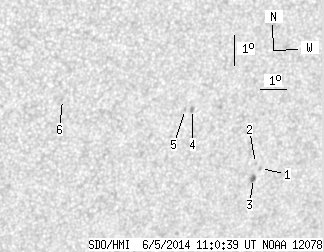

back to the solar disc SDO HMI 2014-06-05 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.96 | -20.72 | 335.54 | 36.71 | 237.81 | 0.6629 | 612.0 | 439.3 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -20.56 | 335.29 | 36.46 | 237.88 | 0.6592 | 636.0 | 562.5 | |
| 1.36 | 3.35 | 0.90 | 2.21 | -21.05 | 335.35 | 36.51 | 237.24 | 0.6626 | 816.1 | 680.6 | |
| 0.00 | 2.17 | 0.00 | 1.36 | -18.82 | 332.36 | 33.53 | 238.49 | 0.6155 | 839.0 | 623.7 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -18.82 | 332.09 | 33.26 | 238.31 | 0.6123 | 816.0 | 608.4 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -18.49 | 327.42 | 28.58 | 235.22 | 0.5545 | -643.0 | -499.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
