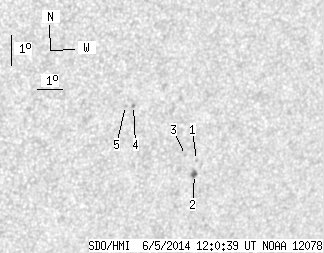

SDO HMI 2014-06-05 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 8.06 | 1.26 | 5.25 | -20.25 | 334.36 | 36.07 | 238.07 | 0.6529 | 682.2 | 575.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-05 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.66 | -20.59 | 335.32 | 37.03 | 238.19 | 0.6658 | 649.0 | 534.6 | |
| 1.90 | 3.80 | 1.26 | 2.52 | -21.04 | 335.37 | 37.08 | 237.59 | 0.6688 | 780.5 | 588.2 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -20.42 | 334.82 | 36.54 | 238.11 | 0.6594 | 504.0 | 417.5 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -18.81 | 332.35 | 34.07 | 238.86 | 0.6218 | 764.0 | 624.8 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -18.81 | 332.04 | 33.76 | 238.65 | 0.6182 | 688.0 | 636.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
