SDO HMI 2014-06-05 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.37 | 273.34 | 24.66 | 136.39 | -4.49 | 301.82 | 5.19 | 230.03 | 0.1209 | 831.2 | 439.6 | |
|
previous
or next observation for the same group /

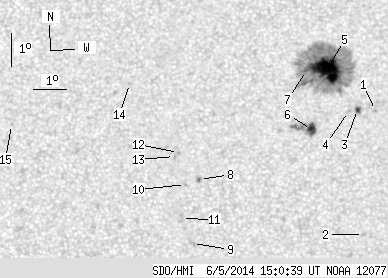

back to the solar disc SDO HMI 2014-06-05 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.63 | -5.36 | 303.60 | 6.97 | 233.04 | 0.1520 | 979.0 | 759.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.16 | 303.29 | 6.66 | 216.13 | 0.1950 | 876.0 | 674.7 | |
| 1.99 | 3.80 | 1.00 | 1.90 | -5.33 | 303.05 | 6.42 | 230.92 | 0.1441 | 1138.4 | 876.3 | |
| 0.00 | 1.90 | 0.00 | 0.95 | -5.39 | 302.77 | 6.14 | 229.36 | 0.1411 | 815.0 | 600.1 | |
| 39.70 | 230.27 | 19.81 | 114.87 | -4.10 | 302.09 | 5.46 | 233.91 | 0.1180 | 1470.7 | 480.4 | |
| 6.96 | 20.71 | 3.48 | 10.35 | -5.93 | 301.64 | 5.01 | 220.71 | 0.1339 | 1106.3 | 902.9 | |
| 0.27 | -5.00 | 0.14 | -5.00 | -4.13 | 301.48 | 4.85 | 230.42 | 0.1099 | 947.0 | 999999 | |
| 0.45 | 1.63 | 0.23 | 0.81 | -7.46 | 298.22 | 1.59 | 192.16 | 0.1310 | -1074.0 | -937.0 | |
| 0.00 | 3.26 | 0.00 | 1.63 | -9.43 | 298.01 | 1.38 | 188.36 | 0.1639 | -790.0 | -786.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -7.61 | 297.79 | 1.16 | 188.75 | 0.1322 | -886.0 | -672.2 | |
| 0.00 | 3.80 | 0.00 | 1.90 | -8.66 | 297.67 | 1.04 | 186.88 | 0.1499 | -814.0 | -700.7 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -6.63 | 297.57 | 0.94 | 188.22 | 0.1148 | -935.0 | -750.5 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -6.76 | 297.45 | 0.82 | 187.03 | 0.1167 | -1017.0 | -706.6 | |
| 0.00 | 0.99 | 0.00 | 0.49 | -4.52 | 296.08 | -0.55 | 172.83 | 0.0774 | -855.0 | -684.1 | |
| 0.00 | 1.09 | 0.00 | 0.54 | -5.77 | 292.46 | -4.16 | 143.64 | 0.1224 | -783.0 | -598.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
