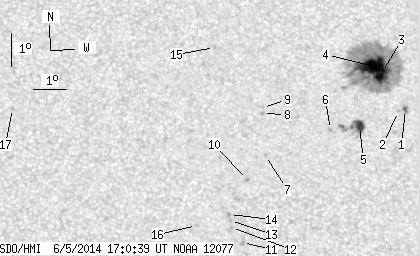

SDO HMI 2014-06-05 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.76 | 271.87 | 23.38 | 135.93 | -4.40 | 301.89 | 6.37 | 235.80 | 0.1363 | 709.0 | 442.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-05 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.09 | 3.35 | 0.54 | 1.68 | -5.32 | 303.14 | 7.62 | 235.58 | 0.1608 | 1221.9 | 888.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.38 | 302.93 | 7.41 | 234.50 | 0.1584 | 877.0 | 651.0 | |
| 7.87 | 230.33 | 3.94 | 115.15 | -4.32 | 302.33 | 6.81 | 238.33 | 0.1396 | 1338.7 | 494.6 | |
| 30.57 | -3.00 | 15.28 | -3.00 | -4.01 | 302.15 | 6.63 | 239.56 | 0.1341 | 1519.8 | 999999 | |
| 7.23 | 20.35 | 3.62 | 10.19 | -5.84 | 301.73 | 6.21 | 227.26 | 0.1472 | 1133.6 | 784.1 | |
| 0.00 | 1.63 | 0.00 | 0.81 | -5.93 | 300.84 | 5.32 | 222.39 | 0.1374 | 940.0 | 760.4 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -6.73 | 298.85 | 3.33 | 206.70 | 0.1291 | -859.0 | -620.4 | |
| 0.00 | 1.63 | 0.00 | 0.81 | -5.44 | 298.76 | 3.23 | 211.27 | 0.1087 | -965.0 | -763.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.26 | 298.76 | 3.23 | 212.17 | 0.1060 | -678.0 | -449.2 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -7.46 | 298.31 | 2.78 | 200.69 | 0.1369 | -932.0 | -807.5 | |
| 0.00 | 2.17 | 0.00 | 1.09 | -9.40 | 298.16 | 2.64 | 195.78 | 0.1680 | -777.0 | -622.5 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -8.93 | 297.82 | 2.30 | 194.53 | 0.1588 | -853.0 | -727.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -8.72 | 297.79 | 2.27 | 194.69 | 0.1550 | -818.0 | -687.4 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -8.53 | 297.76 | 2.24 | 194.80 | 0.1518 | -920.0 | -780.2 | |
| 0.00 | 1.63 | 0.00 | 0.81 | -3.43 | 297.29 | 1.77 | 208.15 | 0.0655 | -743.0 | -573.1 | |
| 0.00 | 1.27 | 0.00 | 0.63 | -8.87 | 296.74 | 1.22 | 187.90 | 0.1540 | -811.0 | -566.4 | |
| 0.00 | 1.54 | 0.00 | 0.77 | -5.28 | 291.12 | -4.40 | 139.55 | 0.1184 | -929.0 | -690.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
