SDO HMI 2014-06-05 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 28.44 | 0.44 | 15.57 | 3.41 | 269.71 | -24.70 | 81.34 | 0.4232 | -577.8 | -513.8 | |
|
previous
or next observation for the same group /

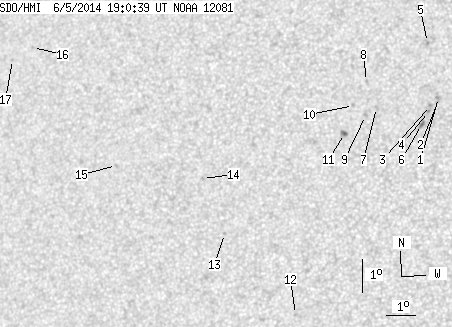

back to the solar disc SDO HMI 2014-06-05 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.01 | 4.29 | 273.37 | -21.04 | 77.90 | 0.3678 | -898.0 | -740.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 4.13 | 273.34 | -21.07 | 78.32 | 0.3678 | -836.0 | -614.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 4.04 | 273.11 | -21.30 | 78.68 | 0.3711 | -1009.0 | -742.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 3.86 | 273.05 | -21.36 | 79.19 | 0.3715 | -946.0 | -764.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 5.97 | 272.95 | -21.46 | 73.76 | 0.3806 | -950.0 | -800.2 | |
| 0.00 | 3.89 | 0.00 | 2.08 | 3.46 | 272.83 | -21.58 | 80.34 | 0.3740 | -971.0 | -782.0 | |
| 0.00 | 1.99 | 0.00 | 1.07 | 3.99 | 271.33 | -23.08 | 79.63 | 0.3992 | -745.0 | -599.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 4.78 | 270.98 | -23.43 | 77.85 | 0.4071 | -834.0 | -627.3 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 3.74 | 270.98 | -23.44 | 80.38 | 0.4042 | -484.0 | -418.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 4.05 | 270.57 | -23.84 | 79.79 | 0.4114 | -755.0 | -620.9 | |
| 0.81 | 3.89 | 0.44 | 2.11 | 3.20 | 270.29 | -24.12 | 81.94 | 0.4138 | -1066.3 | -752.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -2.31 | 268.66 | -25.76 | 95.04 | 0.4377 | -720.0 | -551.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 0.16 | 266.26 | -28.16 | 89.42 | 0.4738 | -688.0 | -471.3 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 1.84 | 265.48 | -28.93 | 85.98 | 0.4867 | -842.0 | -686.6 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 2.24 | 262.43 | -31.98 | 85.58 | 0.5329 | 689.0 | 588.5 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 5.85 | 259.18 | -35.23 | 79.76 | 0.5853 | 810.0 | 665.4 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 5.48 | 258.45 | -35.96 | 80.55 | 0.5947 | 637.0 | 534.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
