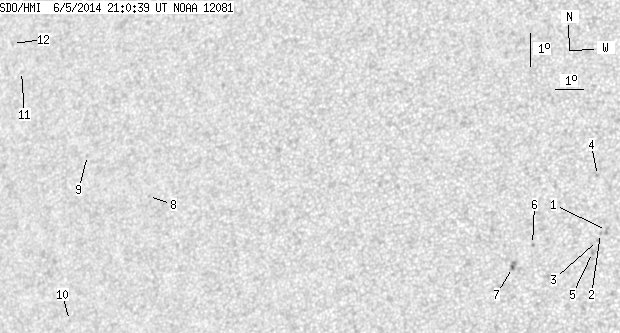

SDO HMI 2014-06-05 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 17.91 | 0.24 | 10.04 | 4.67 | 266.91 | -26.39 | 79.20 | 0.4477 | -326.9 | -407.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-05 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.89 | 0.00 | 1.53 | 4.23 | 273.33 | -19.97 | 77.47 | 0.3504 | -865.0 | -760.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 4.14 | 273.14 | -20.16 | 77.84 | 0.3532 | -911.0 | -732.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 3.93 | 273.04 | -20.26 | 78.48 | 0.3540 | -901.0 | -650.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 5.91 | 272.98 | -20.32 | 73.11 | 0.3625 | -941.0 | -753.2 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 3.56 | 272.89 | -20.41 | 79.58 | 0.3554 | -966.0 | -768.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 3.81 | 270.92 | -22.38 | 79.81 | 0.3876 | -723.0 | -596.1 | |
| 0.45 | 4.52 | 0.24 | 2.44 | 3.11 | 270.28 | -23.02 | 81.82 | 0.3962 | -1057.6 | -797.4 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 5.30 | 257.39 | -35.91 | 80.85 | 0.5937 | 597.0 | 491.7 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 6.57 | 254.95 | -38.35 | 79.35 | 0.6295 | 472.0 | 444.0 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 1.53 | 254.52 | -38.78 | 87.41 | 0.6290 | 483.0 | 366.0 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 9.15 | 252.00 | -41.30 | 76.15 | 0.6734 | 499.0 | 450.8 | |
| 0.00 | 1.27 | 0.00 | 0.85 | 10.02 | 251.50 | -41.80 | 75.03 | 0.6817 | 566.0 | 431.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
