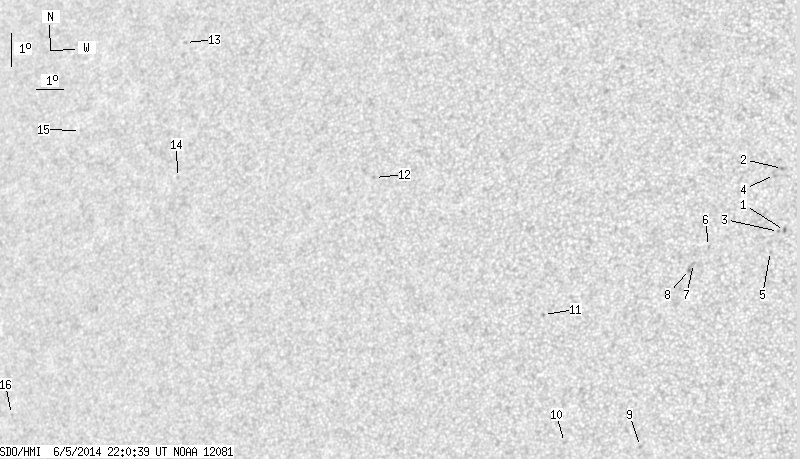

SDO HMI 2014-06-05 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.91 | 0.00 | 12.49 | 3.96 | 264.79 | -27.95 | 80.99 | 0.4701 | -422.1 | -337.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-05 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.91 | 4.24 | 273.36 | -19.39 | 77.12 | 0.3410 | -994.0 | -841.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 6.13 | 273.24 | -19.51 | 71.89 | 0.3509 | -910.0 | -785.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 4.21 | 273.17 | -19.58 | 77.32 | 0.3440 | -911.0 | -745.4 | |
| 0.00 | 2.44 | 0.00 | 1.29 | 5.95 | 272.98 | -19.76 | 72.59 | 0.3540 | -858.0 | -678.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 3.60 | 272.92 | -19.82 | 79.20 | 0.3461 | -890.0 | -640.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 3.76 | 270.89 | -21.85 | 79.73 | 0.3790 | -762.0 | -598.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 3.24 | 270.41 | -22.33 | 81.27 | 0.3855 | -851.0 | -674.5 | |
| 0.00 | 2.44 | 0.00 | 1.31 | 3.06 | 270.28 | -22.46 | 81.79 | 0.3871 | -1107.0 | -827.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -2.33 | 268.67 | -24.08 | 95.44 | 0.4112 | -794.0 | -638.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -2.20 | 266.11 | -26.64 | 94.68 | 0.4514 | -577.0 | -466.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 1.70 | 265.40 | -27.34 | 86.10 | 0.4620 | -760.0 | -610.7 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 5.89 | 259.26 | -33.49 | 79.26 | 0.5608 | 690.0 | 634.8 | |
| 0.00 | 1.36 | 0.00 | 0.91 | 10.06 | 251.48 | -41.27 | 74.83 | 0.6751 | 619.0 | 517.5 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 5.91 | 251.66 | -41.09 | 80.93 | 0.6643 | 602.0 | 413.2 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 7.36 | 247.41 | -45.34 | 79.61 | 0.7195 | 267.0 | 287.5 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -1.30 | 244.80 | -47.95 | 91.66 | 0.7449 | 482.0 | 389.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
