SDO HMI 2014-06-06 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.97 | 0.00 | 13.71 | 5.03 | 262.83 | -27.70 | 78.02 | 0.4685 | -91.9 | -121.7 | |
|
previous
or next observation for the same group /

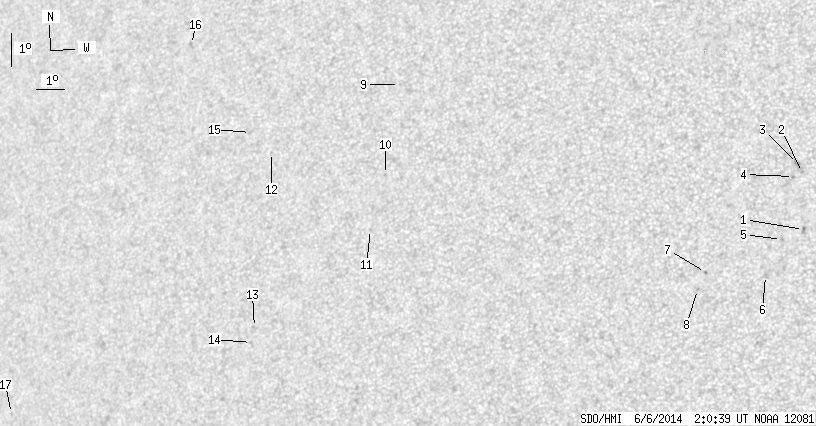

back to the solar disc SDO HMI 2014-06-06 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.26 | 0.00 | 1.18 | 4.30 | 273.42 | -17.11 | 75.44 | 0.3045 | -968.0 | -816.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 6.04 | 273.34 | -17.19 | 70.09 | 0.3139 | -765.0 | -639.8 | |
| 0.00 | 2.80 | 0.00 | 1.47 | 6.31 | 273.17 | -17.36 | 69.44 | 0.3181 | -869.0 | -735.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 5.91 | 273.06 | -17.47 | 70.74 | 0.3178 | -898.0 | -739.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 3.99 | 272.73 | -17.81 | 76.92 | 0.3146 | -743.0 | -686.4 | |
| 0.00 | 1.99 | 0.00 | 1.04 | 2.90 | 272.23 | -18.30 | 80.62 | 0.3192 | -652.0 | -587.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 2.99 | 270.29 | -20.24 | 81.21 | 0.3511 | -912.0 | -740.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 2.47 | 270.04 | -20.49 | 82.76 | 0.3541 | -804.0 | -658.2 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 8.76 | 259.60 | -30.93 | 73.19 | 0.5327 | 648.0 | 581.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 6.00 | 259.31 | -31.22 | 78.41 | 0.5283 | 640.0 | 509.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 4.32 | 258.87 | -31.67 | 81.68 | 0.5311 | 720.0 | 627.6 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 6.68 | 255.08 | -35.45 | 78.47 | 0.5902 | 497.0 | 388.4 | |
| 0.00 | 1.72 | 0.00 | 1.05 | 1.34 | 254.70 | -35.83 | 87.60 | 0.5880 | 377.0 | 347.1 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 0.89 | 254.59 | -35.94 | 88.38 | 0.5893 | 688.0 | 575.7 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 7.30 | 254.23 | -36.31 | 77.69 | 0.6033 | 686.0 | 527.5 | |
| 0.00 | 2.71 | 0.00 | 1.76 | 10.01 | 251.61 | -38.92 | 74.21 | 0.6452 | 462.0 | 373.1 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -1.26 | 244.90 | -45.64 | 91.68 | 0.7174 | 330.0 | 295.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
