SDO HMI 2014-06-06 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.79 | 265.02 | 23.96 | 135.74 | -4.07 | 302.48 | 14.15 | 253.92 | 0.2550 | 915.0 | 434.2 | |
|
previous
or next observation for the same group /

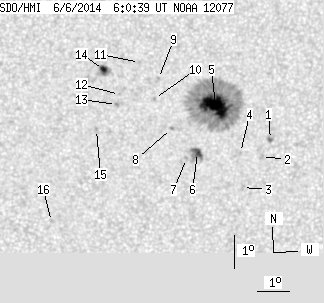

back to the solar disc SDO HMI 2014-06-06 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.72 | 2.99 | 0.37 | 1.55 | -5.00 | 304.48 | 16.15 | 252.68 | 0.2915 | 920.0 | 690.8 | |
| 0.00 | 2.53 | 0.00 | 1.31 | -5.52 | 304.21 | 15.87 | 250.68 | 0.2898 | 570.0 | 508.7 | |
| 0.00 | 2.35 | 0.00 | 1.22 | -6.47 | 303.63 | 15.30 | 246.89 | 0.2863 | 729.0 | 587.7 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -5.40 | 303.54 | 15.20 | 250.34 | 0.2785 | 847.0 | 662.0 | |
| 37.56 | 220.29 | 19.25 | 112.92 | -3.96 | 302.72 | 14.39 | 254.59 | 0.2582 | 1363.4 | 445.5 | |
| 5.07 | 13.49 | 2.60 | 6.91 | -5.40 | 302.18 | 13.85 | 248.62 | 0.2570 | 1126.9 | 802.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -5.58 | 301.84 | 13.50 | 247.46 | 0.2527 | 872.0 | 729.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -4.66 | 301.35 | 13.02 | 250.27 | 0.2395 | 844.0 | 695.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -3.14 | 300.92 | 12.59 | 256.08 | 0.2252 | 792.0 | 581.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -3.75 | 300.81 | 12.47 | 253.32 | 0.2259 | 781.0 | 561.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -2.65 | 300.33 | 11.99 | 257.65 | 0.2134 | -790.0 | -555.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -3.63 | 299.72 | 11.38 | 252.41 | 0.2075 | 757.0 | 517.1 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -3.93 | 299.63 | 11.29 | 250.87 | 0.2076 | 990.0 | 788.1 | |
| 3.44 | 10.41 | 1.74 | 5.26 | -2.86 | 299.21 | 10.87 | 255.38 | 0.1956 | -778.8 | -124.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -4.69 | 299.01 | 10.68 | 246.32 | 0.2025 | -748.0 | -611.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.50 | 297.67 | 9.33 | 231.07 | 0.2075 | -906.0 | -738.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
