SDO HMI 2014-06-06 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.28 | 0.00 | 12.09 | 5.10 | 264.01 | -21.58 | 75.42 | 0.3756 | -44.2 | -129.3 | |
|
previous
or next observation for the same group /

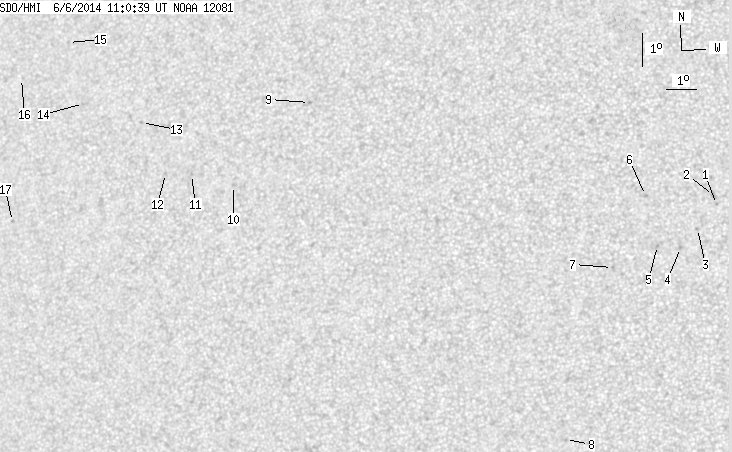

back to the solar disc SDO HMI 2014-06-06 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | 4.89 | 273.52 | -12.08 | 67.66 | 0.2264 | -876.0 | -748.9 | |
| 0.00 | 3.26 | 0.00 | 1.66 | 5.17 | 273.42 | -12.18 | 66.71 | 0.2298 | -902.0 | -714.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 4.16 | 272.94 | -12.66 | 71.55 | 0.2315 | -748.0 | -629.2 | |
| 0.00 | 1.99 | 0.00 | 1.02 | 3.58 | 272.41 | -13.19 | 74.56 | 0.2372 | -897.0 | -691.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 3.64 | 271.69 | -13.91 | 75.07 | 0.2494 | -805.0 | -675.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 5.17 | 271.29 | -14.31 | 69.82 | 0.2635 | -910.0 | -732.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 2.97 | 270.28 | -15.32 | 78.78 | 0.2701 | -874.0 | -650.6 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -2.26 | 268.80 | -16.80 | 97.68 | 0.2927 | -781.0 | -568.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 8.03 | 260.20 | -25.39 | 71.74 | 0.4490 | 851.0 | 680.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 5.49 | 257.74 | -27.85 | 78.32 | 0.4768 | 682.0 | 528.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 5.83 | 256.26 | -29.34 | 78.18 | 0.5000 | 726.0 | 590.0 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 5.86 | 255.34 | -30.26 | 78.44 | 0.5136 | 674.0 | 627.2 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 7.43 | 254.38 | -31.22 | 75.84 | 0.5321 | 697.0 | 578.1 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 8.02 | 252.22 | -33.38 | 75.61 | 0.5646 | 696.0 | 526.1 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 9.90 | 251.46 | -34.13 | 72.70 | 0.5812 | 565.0 | 432.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 8.79 | 249.82 | -35.78 | 75.16 | 0.6000 | 447.0 | 466.5 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 4.41 | 249.84 | -35.76 | 82.45 | 0.5899 | 704.0 | 537.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
