SDO HMI 2014-06-06 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.39 | 0.00 | 10.48 | 5.13 | 263.44 | -21.61 | 74.72 | 0.3769 | -11.4 | 3.4 | |
|
previous
or next observation for the same group /

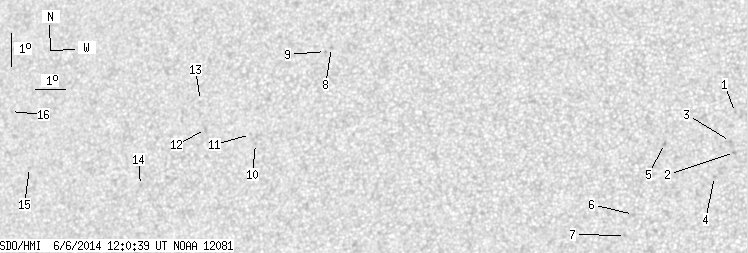

back to the solar disc SDO HMI 2014-06-06 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.46 | 6.11 | 273.54 | -11.51 | 61.68 | 0.2264 | -701.0 | -534.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 4.89 | 273.53 | -11.52 | 66.70 | 0.2176 | -1049.0 | -820.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 5.23 | 273.40 | -11.65 | 65.52 | 0.2219 | -1000.0 | -783.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 4.16 | 272.92 | -12.13 | 70.81 | 0.2229 | -872.0 | -618.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 5.17 | 271.34 | -13.71 | 69.02 | 0.2540 | -930.0 | -708.3 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 3.01 | 270.40 | -14.65 | 78.18 | 0.2592 | -739.0 | -465.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 2.37 | 270.15 | -14.90 | 80.78 | 0.2614 | -797.0 | -550.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 8.13 | 260.40 | -24.65 | 71.06 | 0.4384 | 862.0 | 660.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 8.00 | 260.20 | -24.85 | 71.45 | 0.4407 | 774.0 | 607.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 5.19 | 257.97 | -27.08 | 78.67 | 0.4642 | 751.0 | 539.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 5.46 | 257.79 | -27.26 | 78.16 | 0.4678 | 558.0 | 472.8 | |
| 0.00 | 2.35 | 0.00 | 1.34 | 5.62 | 256.22 | -28.83 | 78.43 | 0.4918 | 769.0 | 510.4 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 6.51 | 255.99 | -29.06 | 76.74 | 0.4978 | 332.0 | 398.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 3.91 | 254.00 | -31.05 | 82.41 | 0.5211 | 740.0 | 585.7 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 4.47 | 249.93 | -35.12 | 82.23 | 0.5810 | 672.0 | 543.5 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 6.18 | 249.10 | -35.95 | 79.52 | 0.5957 | 447.0 | 459.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
