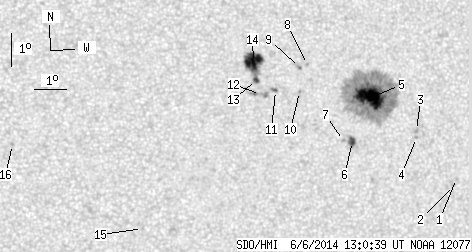

SDO HMI 2014-06-06 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.24 | 288.55 | 33.36 | 150.56 | -3.85 | 302.33 | 17.83 | 257.63 | 0.3141 | 521.5 | 404.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-06 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.68 | -6.39 | 305.86 | 21.36 | 252.96 | 0.3802 | 697.0 | 630.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -6.60 | 305.77 | 21.27 | 252.35 | 0.3797 | 713.0 | 619.8 | |
| 0.00 | 2.08 | 0.00 | 1.10 | -4.92 | 304.50 | 20.00 | 255.93 | 0.3528 | 813.0 | 595.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -5.13 | 304.50 | 20.00 | 255.34 | 0.3537 | 811.0 | 681.6 | |
| 35.74 | 223.94 | 18.71 | 117.25 | -3.91 | 302.98 | 18.48 | 257.89 | 0.3249 | 1338.5 | 413.7 | |
| 3.71 | 6.06 | 1.94 | 3.17 | -5.25 | 302.44 | 17.94 | 253.44 | 0.3214 | 1137.7 | 883.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -5.22 | 302.15 | 17.65 | 253.29 | 0.3166 | 893.0 | 778.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -2.90 | 300.95 | 16.45 | 259.92 | 0.2886 | 881.0 | 656.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -2.99 | 300.70 | 16.20 | 259.45 | 0.2847 | 986.0 | 808.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -3.73 | 300.71 | 16.21 | 256.94 | 0.2873 | 838.0 | 732.5 | |
| 0.45 | 2.80 | 0.23 | 1.44 | -3.69 | 299.95 | 15.45 | 256.45 | 0.2747 | 860.0 | 687.0 | |
| 0.00 | 6.15 | 0.00 | 3.16 | -3.82 | 299.48 | 14.98 | 255.61 | 0.2674 | 821.0 | 817.7 | |
| 1.99 | 37.37 | 1.02 | 19.17 | -3.36 | 299.34 | 14.85 | 257.18 | 0.2635 | 1051.5 | -102.4 | |
| 22.35 | -13.00 | 11.46 | -13.00 | -2.81 | 299.24 | 14.74 | 259.16 | 0.2600 | -1013.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -7.91 | 295.86 | 11.36 | 234.89 | 0.2396 | -698.0 | -558.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -5.33 | 291.78 | 7.28 | 233.74 | 0.1572 | -866.0 | -645.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
