SDO HMI 2014-06-06 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.67 | 299.92 | 35.75 | 156.85 | -3.85 | 302.15 | 18.20 | 257.80 | 0.3203 | 363.5 | 376.0 | |
|
previous
or next observation for the same group /

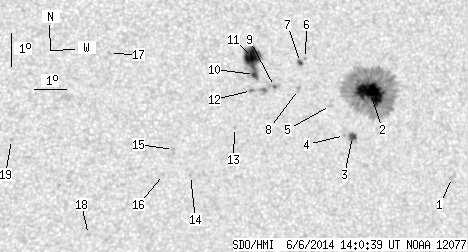

back to the solar disc SDO HMI 2014-06-06 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.43 | 0.00 | 2.38 | -6.48 | 305.77 | 21.82 | 253.06 | 0.3878 | 743.0 | 623.8 | |
| 36.55 | 221.02 | 19.20 | 116.11 | -3.88 | 303.01 | 19.06 | 258.32 | 0.3342 | 1320.3 | 415.6 | |
| 3.44 | 5.07 | 1.80 | 2.66 | -5.22 | 302.46 | 18.52 | 254.00 | 0.3305 | 1135.7 | 904.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -5.19 | 302.21 | 18.26 | 253.88 | 0.3262 | 955.0 | 754.2 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -4.27 | 301.73 | 17.79 | 256.31 | 0.3149 | 189.0 | 108.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -2.84 | 300.91 | 16.96 | 260.41 | 0.2968 | 874.0 | 734.7 | |
| 1.45 | 2.17 | 0.75 | 1.13 | -2.96 | 300.75 | 16.80 | 259.91 | 0.2945 | 963.4 | 828.1 | |
| 0.00 | 2.62 | 0.00 | 1.36 | -3.79 | 300.70 | 16.75 | 257.13 | 0.2963 | 857.0 | 724.4 | |
| 0.45 | 8.96 | 0.23 | 4.62 | -3.69 | 299.94 | 15.99 | 256.88 | 0.2835 | 762.8 | 693.3 | |
| 3.62 | 40.53 | 1.86 | 20.84 | -3.33 | 299.30 | 15.35 | 257.68 | 0.2717 | 942.5 | -41.0 | |
| 23.16 | -10.00 | 11.91 | -10.00 | -2.81 | 299.23 | 15.28 | 259.52 | 0.2689 | -975.9 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.16 | -3.81 | 299.21 | 15.26 | 255.85 | 0.2721 | 966.0 | 749.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -4.94 | 298.70 | 14.75 | 251.30 | 0.2689 | -807.0 | -572.5 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -6.41 | 297.34 | 13.40 | 244.21 | 0.2569 | -801.0 | -623.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -5.61 | 296.79 | 12.84 | 246.22 | 0.2428 | -951.0 | -734.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.38 | 296.49 | 12.55 | 242.85 | 0.2437 | -788.0 | -584.1 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -2.68 | 294.75 | 10.81 | 256.07 | 0.1939 | -813.0 | -571.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -8.21 | 294.19 | 10.25 | 231.01 | 0.2275 | -781.0 | -500.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -5.30 | 291.75 | 7.81 | 235.76 | 0.1643 | -744.0 | -614.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
