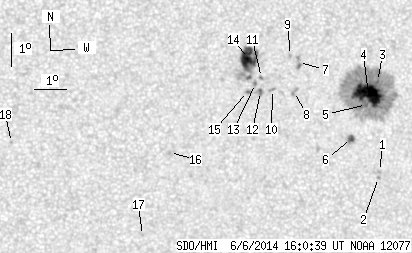

SDO HMI 2014-06-06 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.76 | 306.39 | 33.46 | 161.31 | -3.75 | 302.22 | 19.37 | 258.83 | 0.3388 | 472.9 | 378.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-06 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.87 | -6.23 | 303.50 | 20.66 | 252.85 | 0.3686 | 745.0 | 591.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.41 | 303.48 | 20.64 | 252.35 | 0.3691 | 832.0 | 695.3 | |
| 0.72 | 227.60 | 0.38 | 120.45 | -3.48 | 303.35 | 20.51 | 260.19 | 0.3564 | 760.4 | 403.1 | |
| 36.27 | -3.00 | 19.19 | -3.00 | -3.88 | 303.07 | 20.23 | 258.95 | 0.3530 | 1321.4 | 999999 | |
| 1.45 | -3.00 | 0.77 | -3.00 | -4.18 | 303.01 | 20.17 | 258.07 | 0.3530 | 905.6 | 999999 | |
| 2.53 | 4.88 | 1.34 | 2.58 | -5.22 | 302.55 | 19.71 | 254.89 | 0.3494 | 1144.2 | 856.0 | |
| 0.00 | 4.07 | 0.00 | 2.12 | -2.90 | 300.79 | 17.95 | 260.72 | 0.3132 | 771.0 | 879.9 | |
| 0.00 | 3.80 | 0.00 | 1.98 | -3.78 | 300.68 | 17.84 | 257.87 | 0.3140 | 823.0 | 705.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -2.69 | 300.53 | 17.69 | 261.27 | 0.3084 | 775.0 | 587.8 | |
| 0.00 | 2.44 | 0.00 | 1.27 | -3.72 | 299.97 | 17.13 | 257.60 | 0.3023 | 925.0 | 667.0 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -3.35 | 299.62 | 16.78 | 258.57 | 0.2953 | -648.0 | -514.0 | |
| 0.81 | 4.88 | 0.42 | 2.53 | -3.78 | 299.59 | 16.75 | 257.14 | 0.2963 | 1012.8 | 813.0 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -3.54 | 299.43 | 16.59 | 257.83 | 0.2928 | 956.0 | 770.6 | |
| 21.62 | 45.77 | 11.17 | 23.66 | -2.77 | 299.20 | 16.35 | 260.28 | 0.2866 | -1021.2 | -15.4 | |
| 0.36 | 2.17 | 0.19 | 1.12 | -3.78 | 299.18 | 16.34 | 256.83 | 0.2895 | 865.8 | 725.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -5.64 | 296.75 | 13.91 | 247.73 | 0.2597 | -866.0 | -682.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.18 | 295.97 | 13.13 | 237.72 | 0.2671 | -758.0 | -635.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -5.33 | 291.82 | 8.98 | 239.21 | 0.1817 | -809.0 | -678.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
