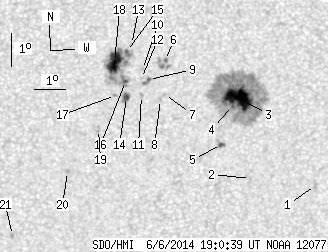

SDO HMI 2014-06-06 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.75 | 340.99 | 34.85 | 181.25 | -3.66 | 302.01 | 20.83 | 259.82 | 0.3621 | 387.2 | 316.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-06 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.34 | 0.00 | 2.38 | -6.50 | 305.83 | 24.66 | 254.73 | 0.4314 | 648.0 | 566.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -6.28 | 303.65 | 22.47 | 253.94 | 0.3971 | 810.0 | 650.3 | |
| 36.09 | 222.33 | 19.33 | 119.06 | -3.84 | 303.17 | 21.99 | 259.85 | 0.3812 | 1282.9 | 400.0 | |
| 0.81 | -3.00 | 0.44 | -3.00 | -4.05 | 302.98 | 21.80 | 259.21 | 0.3787 | 861.2 | 999999 | |
| 1.45 | 4.88 | 0.77 | 2.61 | -5.24 | 302.65 | 21.48 | 255.94 | 0.3774 | 1077.4 | 804.8 | |
| 0.54 | 11.04 | 0.29 | 5.81 | -2.68 | 300.76 | 19.59 | 262.06 | 0.3396 | 958.5 | 732.8 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -3.72 | 300.75 | 19.58 | 259.04 | 0.3420 | 827.0 | 708.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -3.87 | 300.62 | 19.45 | 258.53 | 0.3404 | 990.0 | 761.0 | |
| 0.72 | 4.43 | 0.38 | 2.33 | -3.26 | 300.22 | 19.05 | 260.12 | 0.3322 | 966.4 | 821.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -2.95 | 300.03 | 18.85 | 260.94 | 0.3282 | 698.0 | 528.2 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -3.75 | 300.01 | 18.83 | 258.55 | 0.3301 | 903.0 | 669.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -3.23 | 300.00 | 18.82 | 260.10 | 0.3284 | 170.0 | 153.4 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -2.19 | 299.66 | 18.49 | 263.13 | 0.3205 | -648.0 | -545.7 | |
| 3.17 | 6.33 | 1.66 | 3.31 | -3.81 | 299.53 | 18.35 | 258.08 | 0.3225 | 1057.7 | 727.2 | |
| 0.90 | 72.27 | 0.47 | 37.71 | -2.41 | 299.50 | 18.33 | 262.41 | 0.3183 | -823.5 | -138.8 | |
| 1.09 | -15.00 | 0.57 | -15.00 | -3.32 | 299.49 | 18.31 | 259.56 | 0.3203 | -722.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -3.74 | 299.17 | 18.00 | 258.06 | 0.3165 | 1060.0 | 870.9 | |
| 20.98 | -15.00 | 10.94 | -15.00 | -2.74 | 299.12 | 17.95 | 261.19 | 0.3128 | -1184.0 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.32 | -4.78 | 298.65 | 17.48 | 254.45 | 0.3120 | -597.0 | -632.8 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -6.06 | 297.70 | 16.52 | 249.54 | 0.3032 | -816.0 | -627.3 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -8.02 | 296.01 | 14.84 | 241.19 | 0.2906 | -975.0 | -781.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
