SDO HMI 2014-06-07 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.18 | 277.64 | 34.98 | 154.49 | -3.58 | 302.40 | 26.75 | 261.96 | 0.4555 | 363.9 | 305.6 | |
|
previous
or next observation for the same group /

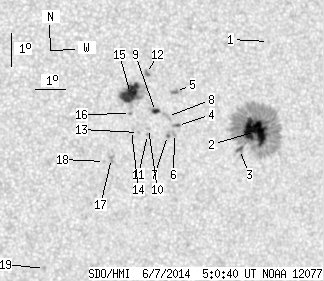

back to the solar disc SDO HMI 2014-06-07 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.51 | -1.02 | 303.86 | 28.21 | 267.73 | 0.4750 | 537.0 | 470.4 | |
| 36.21 | 201.14 | 20.33 | 112.96 | -3.76 | 303.47 | 27.82 | 261.87 | 0.4724 | 1173.2 | 380.5 | |
| 1.72 | -2.00 | 0.96 | -2.00 | -4.30 | 302.94 | 27.29 | 260.55 | 0.4654 | 803.6 | 999999 | |
| 0.72 | 2.90 | 0.40 | 1.59 | -3.57 | 300.81 | 25.16 | 261.52 | 0.4307 | 805.6 | 724.0 | |
| 0.00 | 4.25 | 0.00 | 2.33 | -2.53 | 300.71 | 25.06 | 263.90 | 0.4274 | 1040.0 | 827.2 | |
| 0.00 | 2.17 | 0.00 | 1.19 | -3.81 | 300.71 | 25.06 | 260.92 | 0.4298 | 844.0 | 785.3 | |
| 0.36 | 2.63 | 0.20 | 1.44 | -3.87 | 300.48 | 24.83 | 260.70 | 0.4263 | 1027.5 | 831.0 | |
| 0.00 | 3.98 | 0.00 | 2.18 | -3.29 | 300.46 | 24.81 | 262.05 | 0.4248 | 883.0 | 640.1 | |
| 2.63 | 4.98 | 1.43 | 2.71 | -3.14 | 300.06 | 24.41 | 262.29 | 0.4181 | 897.6 | 505.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -3.66 | 299.83 | 24.18 | 260.99 | 0.4157 | 620.0 | 473.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -3.84 | 299.81 | 24.16 | 260.54 | 0.4157 | 657.0 | 522.0 | |
| 0.00 | 2.90 | 0.00 | 1.57 | -1.98 | 299.73 | 24.08 | 265.00 | 0.4111 | -939.0 | -711.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -3.78 | 299.50 | 23.85 | 260.58 | 0.4108 | 713.0 | 591.7 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -3.72 | 299.27 | 23.62 | 260.64 | 0.4069 | 193.0 | 375.6 | |
| 21.54 | 40.55 | 11.66 | 21.96 | -2.59 | 299.21 | 23.56 | 263.39 | 0.4037 | -976.4 | -252.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -3.20 | 299.22 | 23.57 | 261.89 | 0.4050 | -697.0 | -571.2 | |
| 0.00 | 3.08 | 0.00 | 1.66 | -4.57 | 298.63 | 22.98 | 258.28 | 0.3991 | -821.0 | -754.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -4.66 | 298.40 | 22.75 | 257.94 | 0.3958 | -860.0 | -561.1 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -7.94 | 296.56 | 20.91 | 248.52 | 0.3815 | -866.0 | -628.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
