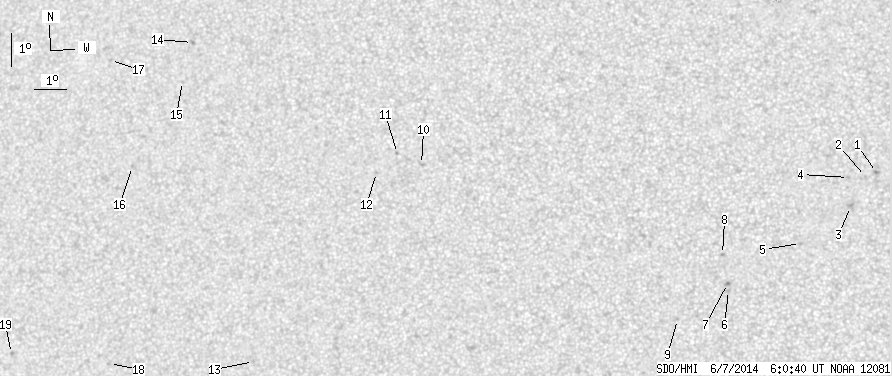

SDO HMI 2014-06-07 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 30.17 | 0.00 | 15.62 | 4.13 | 262.18 | -12.92 | 60.91 | 0.2436 | -16.3 | -44.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-07 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 0.99 | 5.31 | 273.82 | -1.28 | 13.67 | 0.0944 | -1154.0 | -875.5 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 5.19 | 273.49 | -1.61 | 17.46 | 0.0939 | -808.0 | -672.7 | |
| 0.00 | 3.98 | 0.00 | 1.98 | 4.27 | 273.03 | -2.07 | 26.18 | 0.0820 | -795.0 | -676.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 5.16 | 272.97 | -2.13 | 22.69 | 0.0965 | -895.0 | -657.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 3.15 | 271.51 | -3.59 | 49.40 | 0.0828 | -795.0 | -610.8 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 1.72 | 269.31 | -5.79 | 74.09 | 0.1053 | -833.0 | -634.2 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 1.93 | 269.28 | -5.82 | 72.24 | 0.1069 | -1091.0 | -893.2 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 2.82 | 269.13 | -5.98 | 65.29 | 0.1150 | -912.0 | -757.1 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 0.84 | 267.75 | -7.35 | 84.02 | 0.1292 | -776.0 | -521.2 | |
| 0.00 | 2.90 | 0.00 | 1.50 | 5.57 | 259.73 | -15.37 | 70.03 | 0.2819 | 948.0 | 687.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 5.91 | 258.96 | -16.14 | 69.80 | 0.2959 | 765.0 | 611.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 5.33 | 258.31 | -16.79 | 72.33 | 0.3033 | 898.0 | 709.7 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -0.43 | 254.42 | -20.68 | 91.40 | 0.3548 | 829.0 | 697.4 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 9.32 | 252.11 | -22.99 | 67.35 | 0.4193 | 797.0 | 642.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 8.12 | 251.86 | -23.25 | 70.27 | 0.4168 | 569.0 | 429.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 5.52 | 250.31 | -24.79 | 77.17 | 0.4298 | 713.0 | 539.1 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 8.77 | 249.38 | -25.72 | 70.57 | 0.4567 | 730.0 | 561.4 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -0.48 | 249.65 | -25.45 | 91.28 | 0.4316 | 713.0 | 535.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -0.18 | 246.30 | -28.80 | 90.50 | 0.4837 | 787.0 | 660.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
