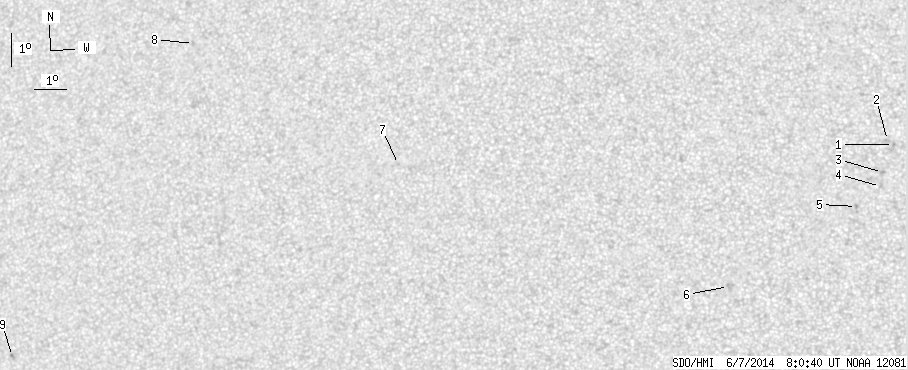

SDO HMI 2014-06-07 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.66 | 0.00 | 7.52 | 4.60 | 265.31 | -8.69 | 223.07 | 0.2017 | -357.2 | -274.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-07 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.21 | 274.26 | 0.25 | 357.64 | 0.1072 | -902.0 | -728.1 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 6.33 | 274.08 | 0.07 | 359.36 | 0.1093 | -782.0 | -692.7 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 5.35 | 273.92 | -0.08 | 0.91 | 0.0922 | -1023.0 | -771.6 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 4.92 | 273.86 | -0.15 | 1.72 | 0.0848 | -845.0 | -573.8 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 4.31 | 273.13 | -0.88 | 11.71 | 0.0757 | -1125.0 | -923.8 | |
| 0.00 | 2.17 | 0.00 | 1.08 | 1.88 | 269.23 | -4.78 | 69.35 | 0.0894 | -904.0 | -833.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 5.61 | 258.96 | -15.05 | 69.55 | 0.2770 | 821.0 | 655.2 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 9.33 | 252.16 | -21.85 | 66.36 | 0.4026 | 742.0 | 613.0 | |
| 0.00 | 2.08 | 0.00 | 1.16 | -0.23 | 246.38 | -27.62 | 90.66 | 0.4656 | 803.0 | 679.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
