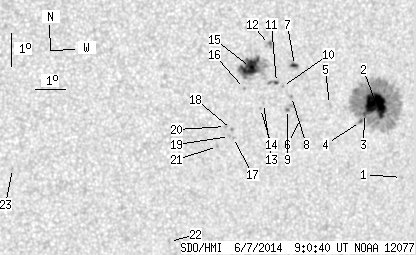

SDO HMI 2014-06-07 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.83 | 275.16 | 33.25 | 156.34 | -3.61 | 302.45 | 28.99 | 262.43 | 0.4898 | 297.7 | 264.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-07 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.63 | -5.97 | 304.62 | 31.16 | 258.44 | 0.5273 | 521.0 | 442.2 | |
| 34.13 | 197.44 | 19.60 | 113.41 | -3.74 | 303.62 | 30.16 | 262.44 | 0.5078 | 1187.0 | 362.9 | |
| 0.27 | -2.00 | 0.16 | -2.00 | -4.01 | 303.21 | 29.75 | 261.81 | 0.5021 | 1057.3 | 999999 | |
| 0.54 | -2.00 | 0.31 | -2.00 | -4.25 | 303.08 | 29.62 | 261.29 | 0.5006 | 776.5 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.07 | -3.73 | 301.97 | 28.51 | 262.06 | 0.4829 | 757.0 | 584.8 | |
| 0.00 | 2.63 | 0.00 | 1.47 | -4.16 | 300.99 | 27.53 | 260.89 | 0.4687 | 594.0 | 452.4 | |
| 1.81 | 3.53 | 1.01 | 1.97 | -2.54 | 300.73 | 27.27 | 264.29 | 0.4619 | 877.0 | 712.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -3.49 | 300.65 | 27.19 | 262.24 | 0.4623 | 841.0 | 716.5 | |
| 0.45 | 3.44 | 0.25 | 1.92 | -3.88 | 300.53 | 27.07 | 261.35 | 0.4611 | 995.0 | 767.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -3.18 | 300.34 | 26.88 | 262.82 | 0.4568 | 729.0 | 626.1 | |
| 0.81 | 4.53 | 0.45 | 2.51 | -3.06 | 300.13 | 26.67 | 263.04 | 0.4534 | 839.0 | 617.8 | |
| 0.00 | 3.17 | 0.00 | 1.75 | -1.90 | 299.87 | 26.41 | 265.55 | 0.4477 | -917.0 | -677.0 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -3.70 | 299.70 | 26.24 | 261.51 | 0.4480 | 593.0 | 476.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -3.85 | 299.61 | 26.15 | 261.14 | 0.4468 | 727.0 | 564.6 | |
| 20.82 | 44.36 | 11.47 | 24.45 | -2.60 | 299.23 | 25.77 | 263.86 | 0.4387 | -920.3 | -228.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -3.24 | 299.05 | 25.59 | 262.35 | 0.4369 | -724.0 | -629.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -4.73 | 298.72 | 25.26 | 258.84 | 0.4353 | -618.0 | -512.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -4.49 | 298.65 | 25.19 | 259.36 | 0.4335 | -822.0 | -695.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -4.70 | 298.59 | 25.13 | 258.85 | 0.4331 | -906.0 | -797.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -4.40 | 298.44 | 24.98 | 259.49 | 0.4300 | -722.0 | -638.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -5.01 | 298.19 | 24.73 | 257.99 | 0.4279 | -789.0 | -728.2 | |
| 0.00 | 2.08 | 0.00 | 1.13 | -7.91 | 296.73 | 23.27 | 250.43 | 0.4170 | -855.0 | -609.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -5.67 | 291.48 | 18.02 | 251.97 | 0.3252 | -856.0 | -607.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
