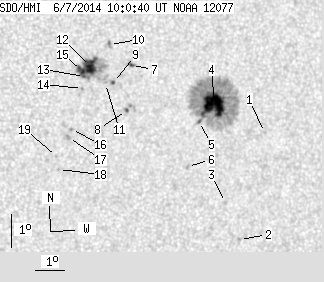

SDO HMI 2014-06-07 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.58 | 270.39 | 30.97 | 154.63 | -3.60 | 302.57 | 29.66 | 262.62 | 0.4998 | 299.2 | 300.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-07 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.43 | -4.59 | 305.47 | 32.56 | 261.37 | 0.5447 | 635.0 | 527.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -7.87 | 304.79 | 31.87 | 255.19 | 0.5431 | 706.0 | 594.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -6.73 | 304.19 | 31.28 | 257.05 | 0.5312 | 667.0 | 542.5 | |
| 30.42 | 195.53 | 17.57 | 112.95 | -3.74 | 303.64 | 30.73 | 262.56 | 0.5162 | 1194.6 | 378.0 | |
| 0.63 | -4.00 | 0.36 | -4.00 | -4.25 | 303.13 | 30.22 | 261.44 | 0.5095 | 769.1 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -5.63 | 302.77 | 29.86 | 258.65 | 0.5073 | 782.0 | 637.2 | |
| 1.09 | 3.80 | 0.61 | 2.13 | -2.54 | 300.70 | 27.79 | 264.39 | 0.4699 | 914.8 | 770.0 | |
| 0.63 | 4.89 | 0.36 | 2.74 | -3.91 | 300.57 | 27.65 | 261.44 | 0.4702 | 940.9 | 735.9 | |
| 0.81 | 1.81 | 0.45 | 1.01 | -3.06 | 300.09 | 27.18 | 263.15 | 0.4613 | 957.2 | 806.3 | |
| 0.00 | 2.81 | 0.00 | 1.56 | -1.90 | 299.93 | 27.02 | 265.64 | 0.4572 | -820.0 | -642.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -3.09 | 299.82 | 26.91 | 263.02 | 0.4571 | 702.0 | 614.8 | |
| 14.66 | 49.15 | 8.12 | 27.23 | -2.57 | 299.30 | 26.38 | 264.05 | 0.4482 | -880.9 | -65.9 | |
| 1.00 | -12.00 | 0.55 | -12.00 | -2.87 | 299.10 | 26.19 | 263.33 | 0.4456 | -718.7 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -3.24 | 299.04 | 26.13 | 262.49 | 0.4453 | -713.0 | -597.0 | |
| 5.34 | -12.00 | 2.95 | -12.00 | -2.69 | 298.99 | 26.08 | 263.71 | 0.4436 | -1062.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -4.49 | 298.71 | 25.79 | 259.59 | 0.4429 | -857.0 | -732.2 | |
| 0.00 | 2.53 | 0.00 | 1.40 | -4.73 | 298.61 | 25.70 | 259.01 | 0.4421 | -796.0 | -724.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -5.71 | 298.32 | 25.40 | 256.69 | 0.4405 | -705.0 | -528.4 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -5.31 | 298.23 | 25.32 | 257.55 | 0.4379 | -725.0 | -564.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
