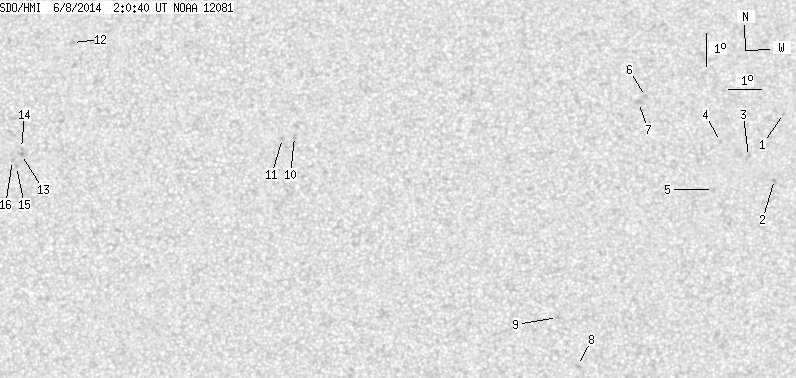

SDO HMI 2014-06-08 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.27 | 0.00 | 13.22 | 4.99 | 263.87 | -0.20 | 202.98 | 0.1697 | -95.4 | -107.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-08 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.50 | 6.45 | 274.01 | 9.95 | 302.55 | 0.2045 | -688.0 | -562.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 4.44 | 273.69 | 9.63 | 294.08 | 0.1835 | -822.0 | -730.3 | |
| 0.00 | 2.72 | 0.00 | 1.37 | 5.14 | 272.90 | 8.84 | 299.55 | 0.1767 | -817.0 | -619.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 5.60 | 272.04 | 7.98 | 304.44 | 0.1683 | -863.0 | -619.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 4.13 | 271.81 | 7.75 | 297.26 | 0.1519 | -828.0 | -635.0 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 6.98 | 269.75 | 5.69 | 320.34 | 0.1549 | -803.0 | -615.6 | |
| 0.00 | 3.08 | 0.00 | 1.54 | 6.80 | 269.53 | 5.47 | 320.66 | 0.1500 | -797.0 | -473.3 | |
| 0.00 | 1.90 | 0.00 | 0.94 | -1.22 | 267.62 | 3.56 | 248.81 | 0.0669 | -849.0 | -734.9 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 0.24 | 267.02 | 2.95 | 271.58 | 0.0518 | -811.0 | -530.2 | |
| 0.00 | 2.53 | 0.00 | 1.27 | 5.77 | 258.99 | -5.07 | 42.01 | 0.1321 | 731.0 | 637.0 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 5.71 | 258.62 | -5.44 | 44.32 | 0.1357 | 908.0 | 788.0 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 8.66 | 252.05 | -12.01 | 54.33 | 0.2545 | 778.0 | 658.2 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 5.23 | 250.54 | -13.53 | 69.24 | 0.2502 | 971.0 | 727.1 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 5.41 | 250.53 | -13.53 | 68.56 | 0.2514 | 800.0 | 664.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 4.86 | 250.39 | -13.68 | 70.82 | 0.2506 | 757.0 | 509.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 5.04 | 250.26 | -13.81 | 70.30 | 0.2536 | 807.0 | 626.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
