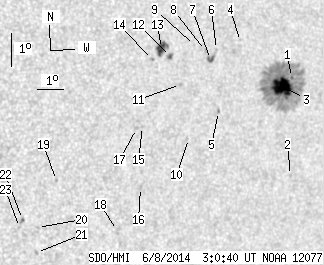

SDO HMI 2014-06-08 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.84 | 209.05 | 23.02 | 135.01 | -3.67 | 303.20 | 39.69 | 263.99 | 0.6429 | 335.2 | 271.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-08 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 166.66 | 0.36 | 109.06 | -3.27 | 304.49 | 40.98 | 264.82 | 0.6597 | 439.5 | 342.7 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -6.27 | 304.67 | 41.15 | 260.33 | 0.6659 | 514.0 | 369.6 | |
| 24.44 | -1.00 | 15.99 | -1.00 | -3.55 | 304.14 | 40.63 | 264.36 | 0.6554 | 1028.9 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -2.17 | 302.42 | 38.90 | 266.34 | 0.6311 | 479.0 | 471.9 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -4.30 | 301.65 | 38.14 | 262.84 | 0.6229 | 646.0 | 622.7 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -2.41 | 301.49 | 37.98 | 265.87 | 0.6186 | 468.0 | 402.8 | |
| 1.81 | 4.16 | 1.14 | 2.61 | -2.72 | 301.27 | 37.75 | 265.35 | 0.6158 | 757.8 | 629.5 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -2.44 | 301.06 | 37.55 | 265.78 | 0.6128 | 563.0 | 549.1 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -2.29 | 300.64 | 37.12 | 265.99 | 0.6068 | 567.0 | 427.7 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -5.12 | 300.54 | 37.03 | 261.31 | 0.6090 | 759.0 | 724.1 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -3.47 | 300.15 | 36.63 | 263.96 | 0.6011 | 697.0 | 541.8 | |
| 1.36 | 2.81 | 0.83 | 1.73 | -2.62 | 299.73 | 36.22 | 265.34 | 0.5944 | -556.1 | -409.2 | |
| 7.33 | 11.41 | 4.49 | 6.98 | -2.37 | 299.39 | 35.87 | 265.72 | 0.5893 | -833.6 | -584.2 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -2.71 | 299.06 | 35.55 | 265.11 | 0.5850 | -805.0 | -638.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -4.75 | 298.78 | 35.26 | 261.57 | 0.5838 | -734.0 | -637.8 | |
| 0.00 | 1.72 | 0.00 | 1.05 | -6.62 | 298.83 | 35.32 | 258.42 | 0.5884 | -521.0 | -509.8 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -4.81 | 298.55 | 35.04 | 261.42 | 0.5808 | -727.0 | -612.0 | |
| 0.00 | 3.08 | 0.00 | 1.87 | -7.94 | 298.08 | 34.57 | 255.96 | 0.5815 | -173.0 | -204.9 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -6.40 | 295.71 | 32.20 | 257.86 | 0.5438 | -627.0 | -526.7 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -7.84 | 295.13 | 31.62 | 255.03 | 0.5397 | 173.0 | 258.2 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -8.60 | 295.17 | 31.65 | 253.66 | 0.5428 | 693.0 | 467.3 | |
| 0.36 | 2.17 | 0.21 | 1.27 | -7.59 | 294.57 | 31.06 | 255.26 | 0.5309 | -643.8 | -587.2 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -7.83 | 294.49 | 30.97 | 254.77 | 0.5305 | -819.0 | -610.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
