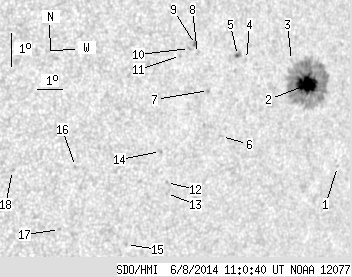

SDO HMI 2014-06-08 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.35 | 177.57 | 17.14 | 124.00 | -3.59 | 303.76 | 44.63 | 264.65 | 0.7062 | 397.3 | 253.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-08 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.73 | -5.98 | 305.93 | 46.81 | 261.63 | 0.7352 | 469.0 | 352.8 | |
| 23.18 | 153.64 | 16.35 | 108.40 | -3.47 | 304.40 | 45.27 | 264.91 | 0.7142 | 1035.7 | 320.5 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -2.73 | 303.67 | 44.54 | 265.89 | 0.7047 | 296.0 | 216.8 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -2.69 | 301.76 | 42.64 | 265.79 | 0.6807 | 536.0 | 460.4 | |
| 0.72 | 2.90 | 0.49 | 1.94 | -2.57 | 301.39 | 42.26 | 265.94 | 0.6758 | 846.6 | 668.4 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -5.04 | 300.87 | 41.74 | 262.22 | 0.6717 | 644.0 | 548.2 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -3.63 | 300.25 | 41.12 | 264.24 | 0.6619 | 626.0 | 452.7 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -2.50 | 299.75 | 40.63 | 265.91 | 0.6544 | -415.0 | -319.4 | |
| 0.45 | 2.17 | 0.30 | 1.42 | -2.23 | 299.66 | 40.54 | 266.32 | 0.6530 | -634.6 | -568.1 | |
| 0.00 | 1.81 | 0.00 | 1.18 | -2.35 | 299.43 | 40.30 | 266.12 | 0.6500 | -793.0 | -643.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -2.56 | 299.07 | 39.95 | 265.76 | 0.6455 | -656.0 | -477.8 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -6.44 | 298.77 | 39.64 | 259.71 | 0.6465 | -628.0 | -531.8 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -6.78 | 298.80 | 39.67 | 259.20 | 0.6476 | -585.0 | -532.2 | |
| 0.00 | 2.17 | 0.00 | 1.40 | -5.49 | 298.45 | 39.32 | 261.12 | 0.6406 | -426.0 | -321.9 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -8.34 | 297.38 | 38.25 | 256.42 | 0.6324 | -626.0 | -515.9 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -5.94 | 295.19 | 36.06 | 259.69 | 0.5973 | -687.0 | -603.4 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -7.87 | 294.75 | 35.62 | 256.36 | 0.5958 | -875.0 | -671.3 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -6.05 | 292.84 | 33.71 | 258.87 | 0.5646 | -685.0 | -469.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
