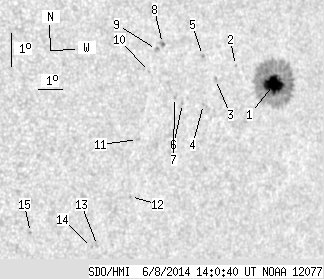

SDO HMI 2014-06-08 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.72 | 165.74 | 17.26 | 119.73 | -3.51 | 304.00 | 46.52 | 264.94 | 0.7292 | 440.5 | 239.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-08 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.72 | 148.81 | 17.26 | 108.36 | -3.44 | 304.46 | 46.98 | 265.10 | 0.7348 | 1002.4 | 305.1 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -2.85 | 302.75 | 45.27 | 265.77 | 0.7138 | 593.0 | 576.2 | |
| 0.00 | 1.81 | 0.00 | 1.26 | -3.27 | 301.90 | 44.43 | 265.10 | 0.7037 | -174.0 | -221.1 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -4.03 | 301.44 | 43.96 | 263.97 | 0.6986 | 680.0 | 570.2 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -2.54 | 301.32 | 43.84 | 266.11 | 0.6958 | 553.0 | 631.2 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -4.00 | 300.55 | 43.07 | 263.92 | 0.6874 | -562.0 | -448.5 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -3.82 | 300.20 | 42.73 | 264.15 | 0.6828 | 481.0 | 354.9 | |
| 0.00 | 2.72 | 0.00 | 1.82 | -2.17 | 299.63 | 42.15 | 266.53 | 0.6742 | -791.0 | -595.8 | |
| 0.00 | 2.17 | 0.00 | 1.45 | -2.35 | 299.39 | 41.91 | 266.24 | 0.6712 | -470.0 | -414.0 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -3.02 | 299.13 | 41.65 | 265.21 | 0.6683 | -584.0 | -455.9 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -5.09 | 298.77 | 41.29 | 262.06 | 0.6659 | -665.0 | -561.0 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -6.84 | 298.64 | 41.16 | 259.43 | 0.6671 | -678.0 | -562.0 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -8.34 | 297.47 | 39.99 | 256.90 | 0.6552 | -653.0 | -570.5 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -8.40 | 297.24 | 39.76 | 256.74 | 0.6523 | -531.0 | -520.6 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -7.93 | 294.78 | 37.30 | 256.78 | 0.6188 | -729.0 | -594.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
