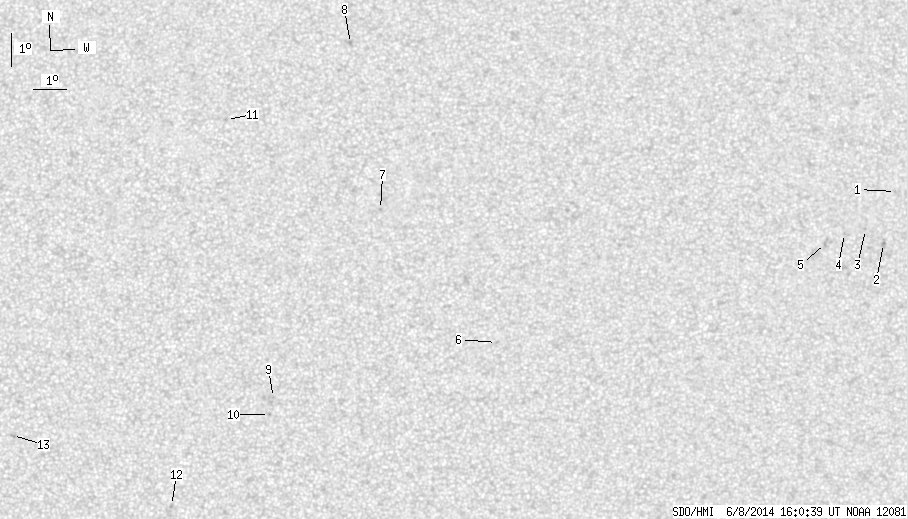

SDO HMI 2014-06-08 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.91 | 0.00 | 11.13 | 3.45 | 263.47 | 7.10 | 229.07 | 0.2053 | 201.2 | 23.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-08 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.47 | 6.04 | 274.42 | 18.05 | 288.24 | 0.3258 | -774.0 | -622.3 | |
| 0.00 | 3.89 | 0.00 | 2.03 | 4.45 | 273.98 | 17.61 | 283.77 | 0.3120 | -930.0 | -667.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 4.88 | 273.42 | 17.05 | 285.56 | 0.3046 | -779.0 | -592.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 4.76 | 272.75 | 16.38 | 285.75 | 0.2932 | -814.0 | -622.0 | |
| 0.00 | 4.07 | 0.00 | 2.10 | 4.46 | 272.14 | 15.77 | 285.27 | 0.2820 | -986.0 | -659.9 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 1.46 | 261.89 | 5.52 | 282.66 | 0.0990 | 776.0 | 590.4 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.52 | 258.37 | 2.00 | 339.41 | 0.0990 | 913.0 | 726.2 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 10.62 | 257.47 | 1.10 | 354.03 | 0.1822 | 952.0 | 779.8 | |
| 0.00 | 0.91 | 0.00 | 0.45 | -0.20 | 255.10 | -1.27 | 108.50 | 0.0236 | 836.0 | 605.7 | |
| 0.00 | 1.36 | 0.00 | 0.67 | -0.72 | 254.97 | -1.40 | 124.03 | 0.0296 | 905.0 | 648.2 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.28 | 253.65 | -2.72 | 18.54 | 0.1485 | 902.0 | 662.8 | |
| 0.00 | 2.17 | 0.00 | 1.08 | -3.48 | 251.98 | -4.39 | 130.24 | 0.1006 | 750.0 | 550.0 | |
| 0.00 | 1.90 | 0.00 | 0.95 | -1.35 | 247.11 | -9.26 | 99.68 | 0.1639 | 865.0 | 751.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
