SDO HMI 2014-06-08 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.26 | 160.55 | 17.84 | 122.63 | -3.50 | 304.13 | 49.42 | 265.18 | 0.7628 | 459.4 | 247.5 | |
|
previous
or next observation for the same group /

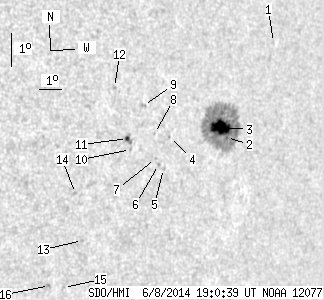

back to the solar disc SDO HMI 2014-06-08 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.88 | -0.80 | 307.06 | 52.36 | 268.81 | 0.7941 | 381.0 | 283.2 | |
| 1.99 | 139.09 | 1.54 | 107.27 | -3.69 | 304.90 | 50.19 | 265.01 | 0.7718 | 587.7 | 293.8 | |
| 19.64 | -2.00 | 15.14 | -2.00 | -3.38 | 304.59 | 49.88 | 265.39 | 0.7681 | 966.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -3.64 | 302.24 | 47.53 | 264.85 | 0.7414 | -422.0 | -296.6 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -4.62 | 302.04 | 47.34 | 263.51 | 0.7400 | 360.0 | 395.8 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -4.50 | 301.80 | 47.10 | 263.65 | 0.7371 | 635.0 | 578.6 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -4.31 | 301.65 | 46.95 | 263.89 | 0.7351 | 678.0 | 633.2 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -3.55 | 301.55 | 46.85 | 264.92 | 0.7333 | 592.0 | 502.4 | |
| 0.00 | 2.62 | 0.00 | 1.88 | -2.69 | 301.02 | 46.31 | 266.05 | 0.7263 | 875.0 | 677.1 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -4.03 | 300.52 | 45.82 | 264.16 | 0.7214 | -445.0 | -391.6 | |
| 1.63 | 4.89 | 1.16 | 3.48 | -3.70 | 300.37 | 45.66 | 264.61 | 0.7192 | -624.1 | -485.5 | |
| 0.00 | 1.90 | 0.00 | 1.33 | -2.14 | 299.72 | 45.02 | 266.74 | 0.7103 | -717.0 | -464.6 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -6.81 | 298.70 | 44.00 | 260.01 | 0.7026 | -660.0 | -464.2 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -5.37 | 298.26 | 43.55 | 261.99 | 0.6951 | -647.0 | -519.7 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -8.25 | 298.07 | 43.37 | 257.83 | 0.6975 | -525.0 | -413.8 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -8.19 | 297.47 | 42.77 | 257.79 | 0.6900 | -756.0 | -640.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
