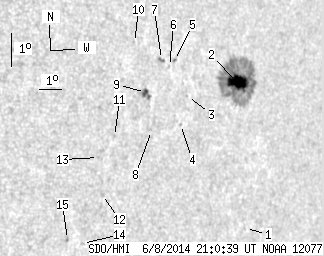

SDO HMI 2014-06-08 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.45 | 154.31 | 16.01 | 120.50 | -3.56 | 304.06 | 50.47 | 265.16 | 0.7746 | 359.2 | 252.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-08 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.81 | -7.85 | 305.58 | 51.99 | 259.88 | 0.7950 | 463.0 | 330.1 | |
| 18.19 | 132.13 | 14.37 | 104.38 | -3.38 | 304.63 | 51.04 | 265.46 | 0.7809 | 909.6 | 319.1 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -3.80 | 302.29 | 48.69 | 264.74 | 0.7550 | -496.0 | -326.8 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -4.65 | 302.03 | 48.44 | 263.58 | 0.7528 | 474.0 | 447.8 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -2.69 | 301.62 | 48.03 | 266.16 | 0.7466 | -418.0 | -362.7 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -2.88 | 301.40 | 47.81 | 265.90 | 0.7441 | 471.0 | 429.3 | |
| 0.00 | 2.44 | 0.00 | 1.79 | -2.66 | 301.03 | 47.43 | 266.16 | 0.7396 | 798.0 | 639.4 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -4.83 | 300.73 | 47.13 | 263.20 | 0.7378 | 588.0 | 462.1 | |
| 2.26 | 6.06 | 1.64 | 4.40 | -3.67 | 300.37 | 46.77 | 264.75 | 0.7325 | -673.5 | -462.6 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -2.14 | 299.80 | 46.20 | 266.80 | 0.7247 | -501.0 | -426.0 | |
| 0.00 | 1.45 | 0.00 | 1.03 | -5.00 | 299.10 | 45.50 | 262.76 | 0.7186 | -472.0 | -407.9 | |
| 0.00 | 2.44 | 0.00 | 1.73 | -6.78 | 298.76 | 45.16 | 260.25 | 0.7168 | -629.0 | -422.5 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -5.64 | 298.46 | 44.87 | 261.78 | 0.7116 | -576.0 | -465.6 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -8.28 | 298.08 | 44.49 | 258.03 | 0.7112 | -537.0 | -411.4 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -8.16 | 297.42 | 43.83 | 258.06 | 0.7029 | -709.0 | -590.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
