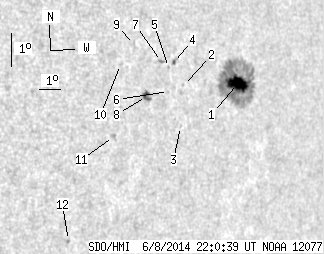

SDO HMI 2014-06-08 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.16 | 151.17 | 19.86 | 119.47 | -3.38 | 304.09 | 51.05 | 265.45 | 0.7808 | 434.6 | 258.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-08 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.00 | 129.52 | 16.80 | 103.60 | -3.35 | 304.67 | 51.63 | 265.53 | 0.7873 | 852.4 | 310.7 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -3.40 | 302.08 | 49.04 | 265.29 | 0.7586 | 584.0 | 407.2 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -4.65 | 302.04 | 49.00 | 263.63 | 0.7591 | 362.0 | 406.2 | |
| 0.54 | 2.72 | 0.41 | 2.04 | -2.69 | 301.57 | 48.53 | 266.18 | 0.7524 | -395.7 | -308.2 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -2.85 | 301.35 | 48.31 | 265.97 | 0.7499 | 333.0 | 316.2 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -3.58 | 301.39 | 48.35 | 264.99 | 0.7509 | 599.0 | 508.7 | |
| 0.00 | 2.26 | 0.00 | 1.68 | -2.66 | 301.02 | 47.98 | 266.19 | 0.7460 | 777.0 | 640.4 | |
| 3.62 | 6.34 | 2.65 | 4.65 | -3.73 | 300.40 | 47.36 | 264.71 | 0.7395 | -596.3 | -355.7 | |
| 0.00 | 2.26 | 0.00 | 1.64 | -2.14 | 299.77 | 46.73 | 266.83 | 0.7311 | -387.0 | -268.9 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -2.74 | 299.18 | 46.14 | 265.95 | 0.7243 | -527.0 | -467.8 | |
| 0.00 | 3.17 | 0.00 | 2.27 | -4.94 | 299.02 | 45.98 | 262.90 | 0.7243 | -361.0 | -320.5 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -8.12 | 297.42 | 44.38 | 258.22 | 0.7096 | -584.0 | -548.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
