SDO HMI 2014-06-08 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.00 | 140.39 | 17.74 | 112.79 | -3.38 | 304.28 | 51.79 | 265.49 | 0.7889 | 483.4 | 260.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-08 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

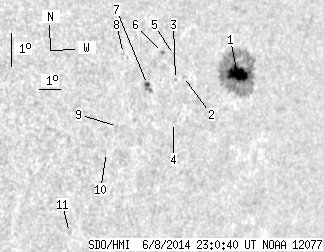

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.91 | 126.90 | 16.94 | 102.80 | -3.32 | 304.66 | 52.17 | 265.60 | 0.7931 | 835.6 | 301.9 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -3.40 | 302.04 | 49.56 | 265.32 | 0.7645 | 232.0 | 348.5 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -3.49 | 301.67 | 49.19 | 265.18 | 0.7604 | 385.0 | 397.6 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -4.80 | 301.69 | 49.20 | 263.45 | 0.7616 | 398.0 | 363.5 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -2.72 | 301.53 | 49.05 | 266.17 | 0.7584 | -461.0 | -358.8 | |
| 0.00 | 1.72 | 0.00 | 1.29 | -2.66 | 301.02 | 48.53 | 266.22 | 0.7524 | 708.0 | 617.7 | |
| 1.09 | 5.25 | 0.80 | 3.89 | -3.63 | 300.39 | 47.90 | 264.88 | 0.7458 | -637.8 | -476.2 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -2.68 | 299.25 | 46.76 | 266.08 | 0.7317 | -591.0 | -505.3 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -4.91 | 299.13 | 46.65 | 263.02 | 0.7322 | -491.0 | -383.8 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -5.70 | 298.72 | 46.23 | 261.88 | 0.7282 | -420.0 | -460.1 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -8.15 | 297.39 | 44.91 | 258.28 | 0.7160 | -479.0 | -442.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
