SDO HMI 2014-06-09 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.62 | 144.84 | 20.06 | 118.04 | -3.32 | 304.38 | 52.45 | 265.60 | 0.7958 | 535.0 | 254.5 | |
|
previous
or next observation for the same group /

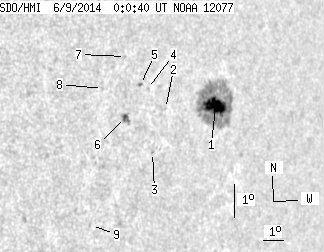

back to the solar disc SDO HMI 2014-06-09 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.63 | 131.80 | 18.57 | 108.21 | -3.31 | 304.71 | 52.78 | 265.64 | 0.7995 | 806.3 | 281.2 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -3.39 | 302.25 | 50.32 | 265.37 | 0.7730 | 532.0 | 509.4 | |
| 0.00 | 1.18 | 0.00 | 0.91 | -4.74 | 301.74 | 49.81 | 263.59 | 0.7683 | 592.0 | 485.0 | |
| 0.00 | 1.09 | 0.00 | 0.83 | -2.78 | 301.35 | 49.42 | 266.11 | 0.7627 | -81.0 | -187.9 | |
| 0.00 | 1.99 | 0.00 | 1.51 | -2.66 | 301.02 | 49.09 | 266.25 | 0.7588 | 744.0 | 530.1 | |
| 1.99 | 5.61 | 1.49 | 4.21 | -3.66 | 300.38 | 48.45 | 264.88 | 0.7522 | -600.7 | -406.0 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -1.80 | 300.29 | 48.36 | 267.35 | 0.7500 | -382.0 | -268.0 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -2.77 | 299.28 | 47.35 | 265.99 | 0.7387 | -517.0 | -387.8 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -6.96 | 299.16 | 47.23 | 260.32 | 0.7415 | -488.0 | -520.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
