SDO HMI 2014-06-09 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.27 | 139.07 | 18.40 | 114.79 | -3.33 | 304.37 | 53.00 | 265.63 | 0.8016 | 460.8 | 254.6 | |
|
previous
or next observation for the same group /

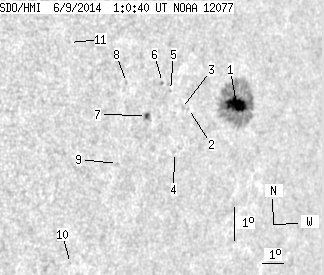

back to the solar disc SDO HMI 2014-06-09 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.73 | 126.93 | 17.24 | 105.59 | -3.31 | 304.72 | 53.35 | 265.67 | 0.8054 | 804.4 | 286.9 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -3.42 | 302.33 | 50.95 | 265.37 | 0.7800 | 494.0 | 472.7 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -3.42 | 301.99 | 50.61 | 265.35 | 0.7763 | 89.0 | 117.2 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -4.77 | 301.77 | 50.39 | 263.60 | 0.7748 | 595.0 | 423.6 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -2.87 | 301.43 | 50.05 | 266.03 | 0.7698 | -445.0 | -301.7 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -2.62 | 301.04 | 49.66 | 266.33 | 0.7652 | 721.0 | 638.5 | |
| 1.54 | 4.26 | 1.16 | 3.22 | -3.63 | 300.35 | 48.97 | 264.96 | 0.7580 | -590.5 | -414.9 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -2.62 | 299.36 | 47.98 | 266.23 | 0.7461 | -549.0 | -456.1 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -5.09 | 299.13 | 47.75 | 262.89 | 0.7453 | -496.0 | -398.1 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -8.15 | 297.39 | 46.01 | 258.49 | 0.7291 | -512.0 | -490.4 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -1.39 | 296.78 | 45.40 | 267.78 | 0.7146 | -453.0 | -364.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
