SDO HMI 2014-06-09 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.54 | 130.29 | 18.88 | 109.31 | -3.33 | 304.55 | 53.72 | 265.66 | 0.8092 | 561.2 | 253.8 | |
|
previous
or next observation for the same group /

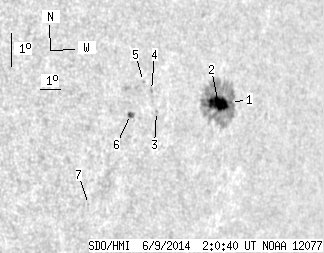

back to the solar disc SDO HMI 2014-06-09 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 122.41 | 0.23 | 103.25 | -3.28 | 305.37 | 54.55 | 265.77 | 0.8176 | 48.3 | 271.7 | |
| 20.64 | -1.00 | 17.40 | -1.00 | -3.31 | 304.75 | 53.92 | 265.70 | 0.8113 | 789.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -3.54 | 301.65 | 50.82 | 265.21 | 0.7787 | 644.0 | 570.8 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -2.89 | 301.36 | 50.54 | 266.02 | 0.7751 | -405.0 | -289.3 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -2.62 | 300.96 | 50.14 | 266.35 | 0.7706 | 576.0 | 526.3 | |
| 1.63 | 3.98 | 1.25 | 3.05 | -3.62 | 300.41 | 49.58 | 265.01 | 0.7650 | -561.4 | -337.6 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -6.37 | 298.72 | 47.90 | 261.20 | 0.7484 | -502.0 | -420.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
