SDO HMI 2014-06-09 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 31.25 | 0.00 | 16.03 | 4.08 | 259.09 | 10.45 | 270.49 | 0.2284 | 190.4 | 205.0 | |
|
previous
or next observation for the same group /

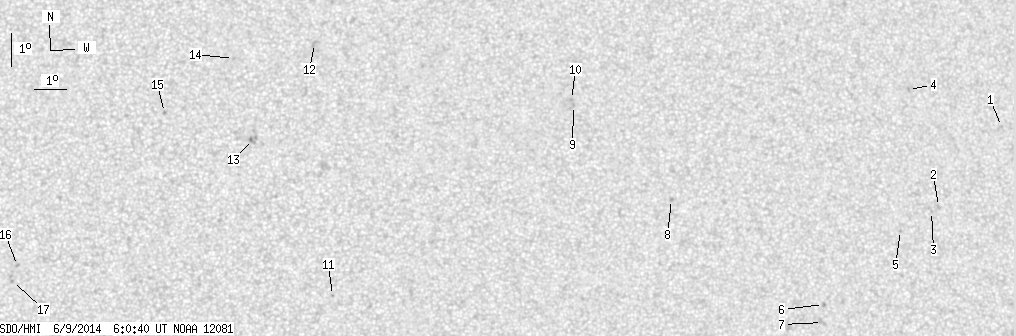

back to the solar disc SDO HMI 2014-06-09 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.45 | 5.62 | 274.12 | 25.49 | 282.24 | 0.4400 | -691.0 | -566.6 | |
| 0.00 | 2.08 | 0.00 | 1.12 | 3.18 | 271.92 | 23.28 | 277.29 | 0.3996 | -695.0 | -557.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 3.03 | 271.68 | 23.05 | 276.97 | 0.3955 | -593.0 | -523.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 6.76 | 271.06 | 22.42 | 286.56 | 0.3969 | -751.0 | -586.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 2.46 | 270.64 | 22.01 | 275.76 | 0.3780 | -862.0 | -645.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 0.21 | 268.11 | 19.48 | 269.74 | 0.3349 | -918.0 | -807.6 | |
| 0.00 | 3.89 | 0.00 | 2.05 | -0.34 | 268.08 | 19.45 | 268.10 | 0.3346 | -705.0 | -611.6 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 3.42 | 263.30 | 14.67 | 282.13 | 0.2597 | 879.0 | 644.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 6.30 | 260.29 | 11.66 | 297.45 | 0.2273 | 692.0 | 612.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 6.48 | 260.23 | 11.60 | 298.29 | 0.2279 | 768.0 | 668.1 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 0.52 | 252.80 | 4.17 | 272.83 | 0.0731 | 964.0 | 729.2 | |
| 0.00 | 3.80 | 0.00 | 1.91 | 8.21 | 252.30 | 3.67 | 335.26 | 0.1520 | 708.0 | 610.0 | |
| 0.00 | 5.25 | 0.00 | 2.61 | 5.28 | 250.41 | 1.78 | 340.36 | 0.0922 | 707.0 | 834.4 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.76 | 249.81 | 1.17 | 351.09 | 0.1317 | 756.0 | 573.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.10 | 247.69 | -0.94 | 9.22 | 0.1027 | 937.0 | 707.4 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 1.44 | 243.21 | -5.43 | 78.21 | 0.0970 | 1048.0 | 831.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 0.96 | 243.05 | -5.58 | 83.40 | 0.0983 | 993.0 | 782.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
