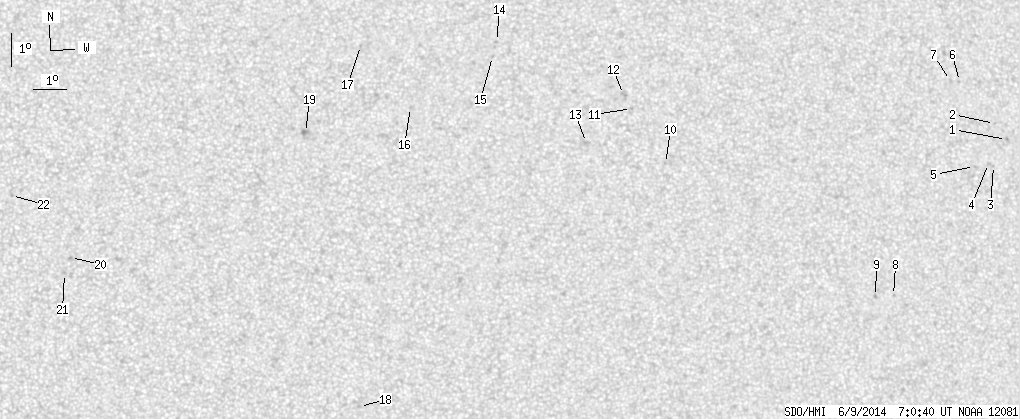

SDO HMI 2014-06-09 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 31.93 | 0.00 | 16.38 | 4.48 | 259.10 | 11.01 | 269.19 | 0.2350 | 191.0 | 263.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-09 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.64 | 5.02 | 272.56 | 24.48 | 281.28 | 0.4227 | -695.0 | -545.0 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 5.51 | 272.18 | 24.10 | 282.60 | 0.4182 | -723.0 | -613.8 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 4.22 | 272.10 | 24.01 | 279.59 | 0.4133 | -671.0 | -567.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 4.29 | 271.93 | 23.85 | 279.80 | 0.4109 | -782.0 | -617.5 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 4.20 | 271.46 | 23.38 | 279.75 | 0.4033 | -792.0 | -586.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 6.79 | 271.08 | 22.99 | 286.27 | 0.4057 | -728.0 | -570.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 6.83 | 270.78 | 22.69 | 286.54 | 0.4013 | -708.0 | -603.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 0.28 | 268.73 | 20.65 | 269.93 | 0.3541 | -630.0 | -541.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 0.25 | 268.15 | 20.06 | 269.84 | 0.3445 | -946.0 | -703.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 4.32 | 261.51 | 13.43 | 286.78 | 0.2430 | 821.0 | 572.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 6.00 | 260.48 | 12.40 | 294.88 | 0.2365 | 770.0 | 611.8 | |
| 0.00 | 2.63 | 0.00 | 1.34 | 6.43 | 260.24 | 12.16 | 296.96 | 0.2359 | 765.0 | 649.8 | |
| 0.00 | 3.26 | 0.00 | 1.65 | 4.96 | 259.06 | 10.97 | 293.13 | 0.2071 | 852.0 | 578.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 8.06 | 256.32 | 8.24 | 313.51 | 0.1965 | 792.0 | 616.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.60 | 256.19 | 8.11 | 312.20 | 0.1895 | 834.0 | 643.2 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 6.04 | 253.63 | 5.55 | 316.03 | 0.1392 | 845.0 | 501.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.94 | 252.12 | 4.03 | 332.29 | 0.1505 | 769.0 | 588.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -3.06 | 252.04 | 3.96 | 229.42 | 0.0911 | 791.0 | 622.1 | |
| 0.00 | 4.35 | 0.00 | 2.16 | 5.28 | 250.41 | 2.33 | 334.96 | 0.0959 | 1065.0 | 860.6 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 1.48 | 243.24 | -4.85 | 76.50 | 0.0872 | 978.0 | 774.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 0.99 | 243.06 | -5.03 | 82.34 | 0.0888 | 890.0 | 765.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 3.37 | 241.43 | -6.66 | 65.30 | 0.1280 | 704.0 | 620.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
