SDO HMI 2014-06-09 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 29.19 | 0.18 | 14.89 | 4.78 | 256.27 | 8.74 | 251.98 | 0.2112 | 413.3 | 368.9 | |
|
previous
or next observation for the same group /

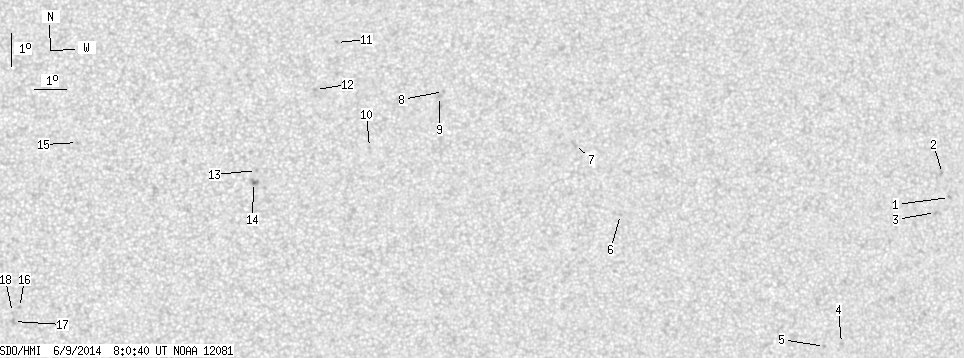

back to the solar disc SDO HMI 2014-06-09 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.94 | 4.75 | 272.41 | 24.87 | 280.49 | 0.4281 | -704.0 | -544.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 5.48 | 272.21 | 24.67 | 282.27 | 0.4270 | -744.0 | -594.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 4.29 | 271.92 | 24.39 | 279.60 | 0.4193 | -706.0 | -641.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 0.31 | 268.74 | 21.20 | 270.02 | 0.3632 | -689.0 | -464.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 0.22 | 268.19 | 20.65 | 269.76 | 0.3542 | -870.0 | -703.5 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 4.26 | 261.72 | 14.18 | 285.72 | 0.2550 | 809.0 | 655.2 | |
| 0.00 | 3.17 | 0.00 | 1.62 | 6.40 | 260.32 | 12.79 | 295.72 | 0.2452 | 702.0 | 617.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.03 | 256.27 | 8.74 | 311.74 | 0.2025 | 711.0 | 582.9 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 7.88 | 256.15 | 8.61 | 311.57 | 0.1991 | 780.0 | 668.7 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 6.32 | 253.95 | 6.42 | 313.25 | 0.1532 | 785.0 | 514.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.55 | 252.98 | 5.45 | 329.71 | 0.1864 | 830.0 | 713.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.10 | 252.31 | 4.78 | 328.65 | 0.1592 | 805.0 | 593.4 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 5.62 | 250.48 | 2.94 | 331.06 | 0.1060 | 833.0 | 654.7 | |
| 0.36 | 3.99 | 0.18 | 1.98 | 5.26 | 250.38 | 2.85 | 330.09 | 0.0996 | 1102.5 | 868.8 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 6.49 | 245.00 | -2.54 | 22.28 | 0.1165 | 860.0 | 615.4 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 1.46 | 243.24 | -4.30 | 75.22 | 0.0778 | 996.0 | 782.7 | |
| 0.00 | 3.08 | 0.00 | 1.53 | 1.03 | 243.06 | -4.48 | 81.03 | 0.0794 | 977.0 | 759.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 1.30 | 243.03 | -4.51 | 77.72 | 0.0808 | 838.0 | 592.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
