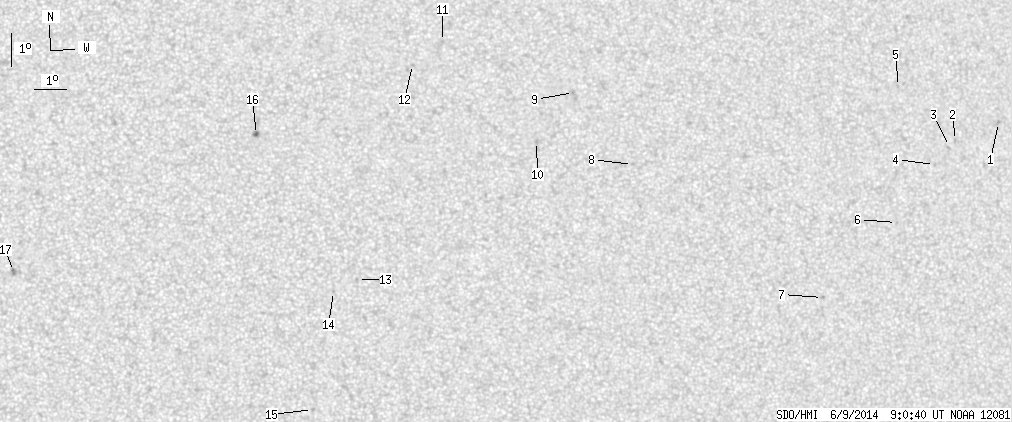

SDO HMI 2014-06-09 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 24.65 | 0.32 | 12.72 | 3.75 | 259.72 | 12.73 | 263.99 | 0.2482 | 235.1 | 249.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-09 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.86 | 5.53 | 274.18 | 27.19 | 281.36 | 0.4658 | -692.0 | -615.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 4.99 | 272.68 | 25.69 | 280.73 | 0.4414 | -758.0 | -529.2 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 4.81 | 272.47 | 25.48 | 280.39 | 0.4377 | -611.0 | -677.0 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 4.26 | 271.94 | 24.96 | 279.32 | 0.4281 | -580.0 | -534.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 6.65 | 270.84 | 23.85 | 285.39 | 0.4183 | -803.0 | -616.3 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 2.50 | 270.62 | 23.63 | 275.46 | 0.4040 | -569.0 | -549.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 0.22 | 268.16 | 21.17 | 269.76 | 0.3627 | -864.0 | -682.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 4.29 | 262.12 | 15.13 | 284.90 | 0.2705 | 686.0 | 551.6 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 6.49 | 260.31 | 13.32 | 295.16 | 0.2541 | 837.0 | 679.9 | |
| 0.00 | 2.35 | 0.00 | 1.20 | 5.00 | 259.12 | 12.13 | 291.28 | 0.2256 | 880.0 | 648.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 8.07 | 256.25 | 9.27 | 310.19 | 0.2096 | 665.0 | 520.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.36 | 255.31 | 8.32 | 310.49 | 0.1895 | 701.0 | 543.2 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 0.81 | 253.54 | 6.55 | 274.19 | 0.1149 | 827.0 | 516.0 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 0.44 | 252.81 | 5.82 | 271.13 | 0.1018 | 873.0 | 695.0 | |
| 0.00 | 1.54 | 0.00 | 0.77 | -3.15 | 252.17 | 5.18 | 236.07 | 0.1091 | 891.0 | 616.3 | |
| 0.63 | 2.54 | 0.32 | 1.26 | 5.23 | 250.48 | 3.49 | 324.65 | 0.1052 | 1162.7 | 973.4 | |
| 0.00 | 2.81 | 0.00 | 1.39 | 1.06 | 243.06 | -3.93 | 79.40 | 0.0700 | 1055.0 | 881.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
