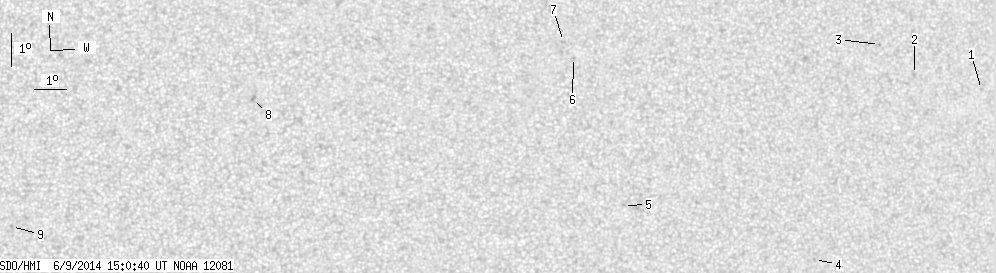

SDO HMI 2014-06-09 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.14 | 0.00 | 6.97 | 4.82 | 261.64 | 17.95 | 266.39 | 0.3202 | 218.0 | 238.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-09 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.52 | 5.41 | 274.22 | 30.54 | 280.00 | 0.5157 | -729.0 | -574.3 | |
| 0.00 | 2.08 | 0.00 | 1.18 | 5.88 | 271.90 | 28.21 | 281.68 | 0.4821 | -125.0 | -205.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 6.80 | 270.74 | 27.05 | 284.06 | 0.4675 | -828.0 | -672.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 0.25 | 268.33 | 24.64 | 269.86 | 0.4187 | -843.0 | -580.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 1.92 | 262.09 | 18.40 | 275.03 | 0.3181 | 744.0 | 663.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 6.44 | 260.60 | 16.91 | 290.21 | 0.3093 | 893.0 | 684.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 6.93 | 260.29 | 16.61 | 292.05 | 0.3074 | 697.0 | 600.6 | |
| 0.00 | 2.99 | 0.00 | 1.50 | 5.21 | 250.55 | 6.86 | 305.47 | 0.1468 | 1184.0 | 918.2 | |
| 0.00 | 1.18 | 0.00 | 0.58 | 1.32 | 243.14 | -0.55 | 29.23 | 0.0196 | 969.0 | 737.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
