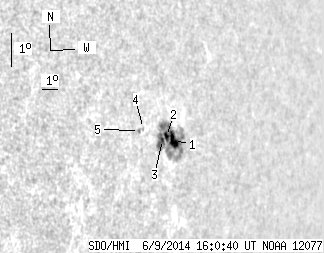

SDO HMI 2014-06-09 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.58 | 73.41 | 14.33 | 77.27 | -3.25 | 305.00 | 61.87 | 266.13 | 0.8843 | 630.6 | 263.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-09 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.41 | 71.06 | 9.99 | 74.94 | -3.29 | 305.22 | 62.09 | 266.10 | 0.8862 | 609.8 | 256.6 | |
| 2.99 | -1.00 | 3.12 | -1.00 | -3.16 | 304.75 | 61.62 | 266.22 | 0.8823 | 701.9 | 999999 | |
| 1.18 | -1.00 | 1.22 | -1.00 | -3.25 | 304.50 | 61.37 | 266.11 | 0.8803 | 802.5 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.63 | -2.91 | 303.28 | 60.14 | 266.45 | 0.8698 | 546.0 | 513.3 | |
| 0.00 | 1.72 | 0.00 | 1.70 | -2.97 | 303.03 | 59.90 | 266.37 | 0.8677 | 491.0 | 405.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
