SDO HMI 2014-06-09 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.59 | 0.00 | 8.11 | 4.68 | 256.44 | 14.97 | 288.61 | 0.2680 | 568.3 | 468.3 | |
|
previous
or next observation for the same group /

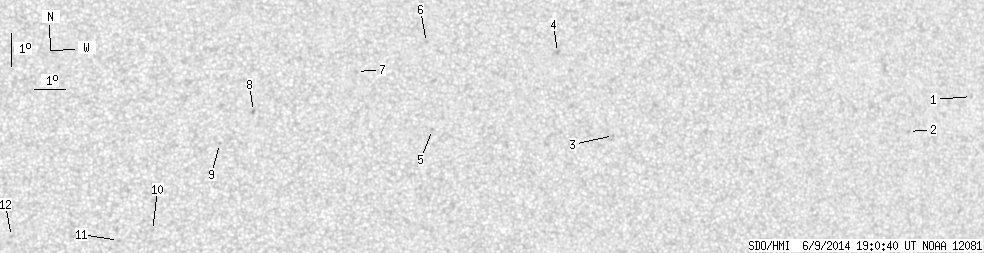

back to the solar disc SDO HMI 2014-06-09 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.64 | 5.56 | 274.39 | 32.92 | 279.62 | 0.5507 | -647.0 | -552.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 4.50 | 272.06 | 30.59 | 278.21 | 0.5146 | -701.0 | -566.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 4.42 | 262.05 | 20.58 | 281.48 | 0.3592 | 789.0 | 614.6 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 6.96 | 260.33 | 18.86 | 289.77 | 0.3424 | 828.0 | 641.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 4.62 | 256.26 | 14.79 | 286.32 | 0.2663 | 747.0 | 664.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 7.28 | 256.14 | 14.67 | 295.66 | 0.2800 | 866.0 | 733.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 6.39 | 253.91 | 12.44 | 296.20 | 0.2397 | 839.0 | 684.9 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 5.18 | 250.68 | 9.21 | 297.84 | 0.1810 | 1054.0 | 839.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 4.21 | 249.61 | 8.14 | 295.44 | 0.1572 | 734.0 | 547.4 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 1.56 | 247.54 | 6.07 | 281.27 | 0.1082 | 728.0 | 606.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 1.26 | 246.50 | 5.03 | 280.21 | 0.0894 | 833.0 | 688.2 | |
| 0.00 | 0.81 | 0.00 | 0.40 | 1.39 | 243.24 | 1.77 | 300.25 | 0.0358 | 750.0 | 587.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
