SDO HMI 2014-06-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.14 | 44.09 | 10.93 | 52.64 | -3.21 | 305.11 | 65.31 | 266.30 | 0.9108 | 470.1 | 207.3 | |
|
previous
or next observation for the same group /

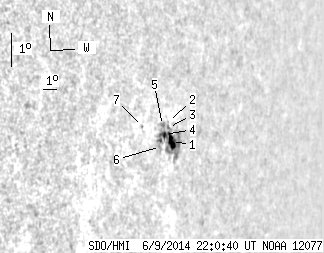

back to the solar disc SDO HMI 2014-06-09 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.60 | 36.21 | 9.12 | 43.47 | -3.30 | 305.32 | 65.52 | 266.21 | 0.9123 | 507.5 | 167.5 | |
| 0.00 | 0.45 | 0.00 | 0.54 | -2.69 | 305.03 | 65.23 | 266.87 | 0.9101 | 292.0 | 301.2 | |
| 0.00 | 1.54 | 0.00 | 1.83 | -2.87 | 305.05 | 65.25 | 266.67 | 0.9103 | 292.0 | 306.3 | |
| 1.54 | -1.00 | 1.81 | -1.00 | -3.08 | 304.78 | 64.98 | 266.43 | 0.9084 | 631.5 | 999999 | |
| 0.00 | 3.35 | 0.00 | 3.91 | -2.81 | 304.61 | 64.81 | 266.72 | 0.9070 | 371.0 | 343.3 | |
| 0.00 | 1.54 | 0.00 | 1.79 | -3.45 | 304.54 | 64.73 | 266.01 | 0.9067 | 543.0 | 485.9 | |
| 0.00 | 1.00 | 0.00 | 1.10 | -2.83 | 303.20 | 63.40 | 266.65 | 0.8964 | 218.0 | 237.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
