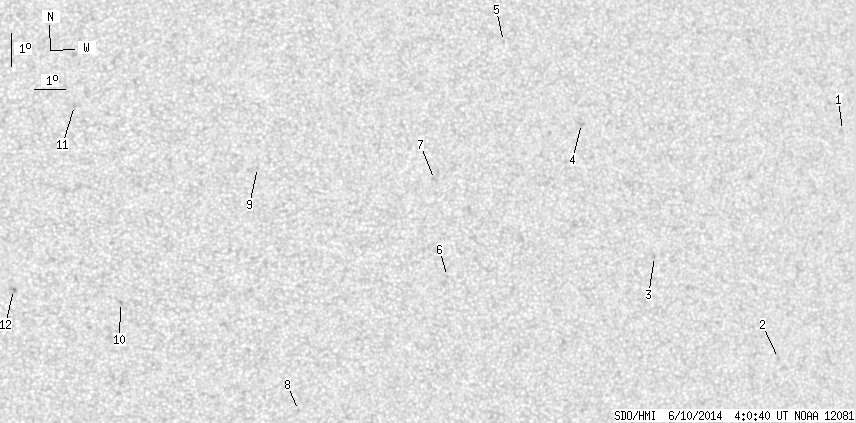

SDO HMI 2014-06-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.77 | 0.00 | 9.45 | 3.51 | 255.65 | 19.15 | 280.45 | 0.3335 | 536.2 | 458.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-10 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.71 | 6.13 | 270.61 | 34.12 | 280.24 | 0.5689 | -653.0 | -502.7 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -0.81 | 268.06 | 31.57 | 267.77 | 0.5260 | -610.0 | -513.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 2.32 | 263.75 | 27.26 | 274.24 | 0.4608 | 800.0 | 655.5 | |
| 0.00 | 2.26 | 0.00 | 1.24 | 6.39 | 261.42 | 24.93 | 284.02 | 0.4336 | 739.0 | 623.1 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 8.91 | 258.96 | 22.47 | 291.44 | 0.4073 | 649.0 | 506.7 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 1.74 | 256.84 | 20.35 | 273.85 | 0.3499 | 675.0 | 481.6 | |
| 0.00 | 2.54 | 0.00 | 1.34 | 4.69 | 256.48 | 19.99 | 282.41 | 0.3504 | 712.0 | 603.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -2.33 | 252.07 | 15.58 | 259.93 | 0.2737 | 646.0 | 471.9 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 5.08 | 250.83 | 14.34 | 288.27 | 0.2609 | 771.0 | 638.9 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 0.98 | 246.50 | 10.01 | 273.23 | 0.1749 | 872.0 | 692.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 6.99 | 245.16 | 8.66 | 307.43 | 0.1892 | 765.0 | 554.5 | |
| 0.00 | 2.81 | 0.00 | 1.40 | 1.38 | 243.21 | 6.72 | 278.17 | 0.1188 | 1068.0 | 855.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
