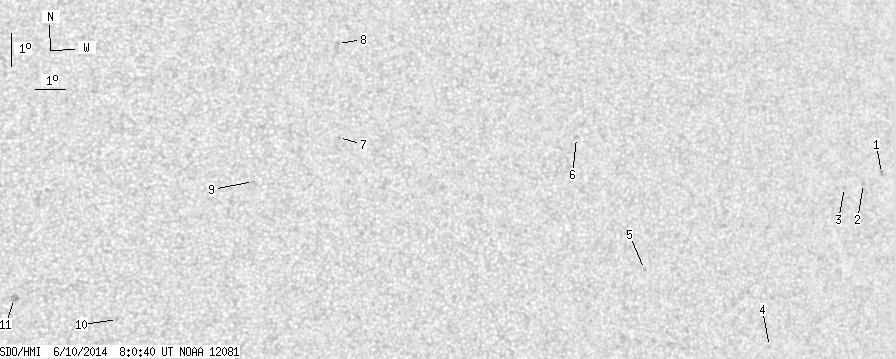

SDO HMI 2014-06-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.03 | 0.00 | 10.52 | 3.98 | 257.76 | 23.46 | 279.38 | 0.3980 | 278.2 | 302.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-10 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.32 | 5.18 | 272.66 | 38.35 | 277.77 | 0.6259 | -564.0 | -518.5 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 4.88 | 271.93 | 37.63 | 277.40 | 0.6157 | -167.0 | -164.3 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 4.76 | 271.20 | 36.89 | 277.32 | 0.6054 | -748.0 | -563.3 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -0.07 | 268.23 | 33.93 | 269.22 | 0.5604 | -489.0 | -326.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 2.30 | 263.78 | 29.48 | 273.88 | 0.4948 | 713.0 | 579.8 | |
| 0.00 | 2.08 | 0.00 | 1.17 | 6.34 | 261.59 | 27.29 | 282.81 | 0.4692 | 624.0 | 526.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 6.37 | 253.64 | 19.34 | 287.49 | 0.3466 | 689.0 | 589.3 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 9.26 | 253.75 | 19.45 | 295.05 | 0.3644 | 680.0 | 548.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 5.04 | 250.86 | 16.56 | 285.81 | 0.2964 | 811.0 | 644.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 0.85 | 246.52 | 12.22 | 271.94 | 0.2127 | 744.0 | 654.2 | |
| 0.00 | 5.25 | 0.00 | 2.64 | 1.49 | 243.33 | 9.03 | 276.68 | 0.1587 | 767.0 | 739.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
