SDO HMI 2014-06-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.87 | 0.00 | 7.87 | 4.83 | 257.45 | 26.44 | 281.77 | 0.4439 | 325.3 | 236.2 | |
|
previous
or next observation for the same group /

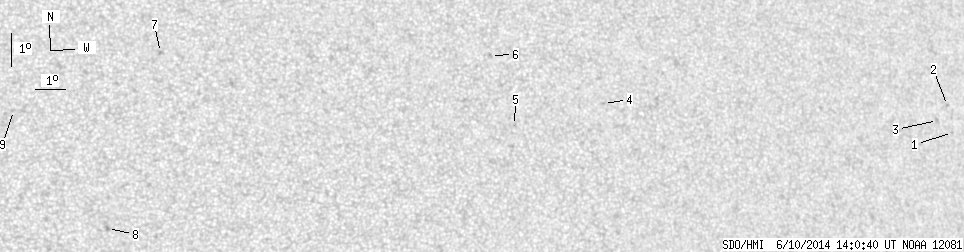

back to the solar disc SDO HMI 2014-06-10 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.72 | 4.38 | 272.89 | 41.89 | 276.04 | 0.6718 | -611.0 | -413.9 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 5.21 | 272.75 | 41.75 | 277.28 | 0.6708 | -614.0 | -530.9 | |
| 0.00 | 1.72 | 0.00 | 1.14 | 4.75 | 272.31 | 41.30 | 276.66 | 0.6645 | -654.0 | -551.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 5.34 | 259.82 | 28.82 | 280.16 | 0.4896 | 742.0 | 573.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 4.68 | 256.73 | 25.73 | 279.75 | 0.4408 | 681.0 | 612.5 | |
| 0.00 | 2.26 | 0.00 | 1.25 | 6.82 | 256.02 | 25.02 | 284.88 | 0.4363 | 866.0 | 574.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 6.96 | 245.27 | 14.26 | 294.86 | 0.2707 | 835.0 | 656.3 | |
| 0.00 | 2.63 | 0.00 | 1.33 | 1.59 | 243.50 | 12.50 | 275.26 | 0.2182 | 1018.0 | 769.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 5.20 | 240.63 | 9.62 | 296.40 | 0.1867 | 665.0 | 496.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
