SDO HMI 2014-06-10 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.07 | 15.85 | 8.24 | 31.74 | -3.27 | 305.45 | 75.55 | 266.50 | 0.9695 | 165.2 | -42.4 | |
|
previous
or next observation for the same group /

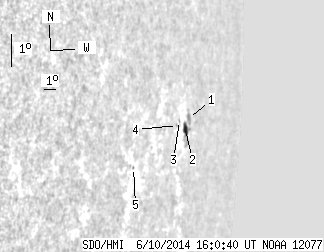

back to the solar disc SDO HMI 2014-06-10 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.26 | 0.00 | 8.81 | -3.01 | 305.95 | 76.06 | 266.79 | 0.9718 | -225.0 | -215.1 | |
| 4.07 | 9.24 | 8.24 | 18.79 | -3.34 | 305.64 | 75.75 | 266.43 | 0.9705 | 180.6 | -12.2 | |
| 0.00 | 1.09 | 0.00 | 2.08 | -3.06 | 304.85 | 74.95 | 266.71 | 0.9670 | 434.0 | 400.5 | |
| 0.00 | 0.45 | 0.00 | 0.85 | -3.21 | 304.64 | 74.74 | 266.55 | 0.9661 | 498.0 | 473.4 | |
| 0.00 | 0.81 | 0.00 | 1.21 | -4.46 | 300.34 | 70.44 | 265.10 | 0.9443 | -174.0 | -172.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
