SDO HMI 2014-06-10 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.86 | 0.00 | 9.33 | 5.94 | 260.90 | 31.01 | 281.91 | 0.5188 | 261.4 | 162.7 | |
|
previous
or next observation for the same group /

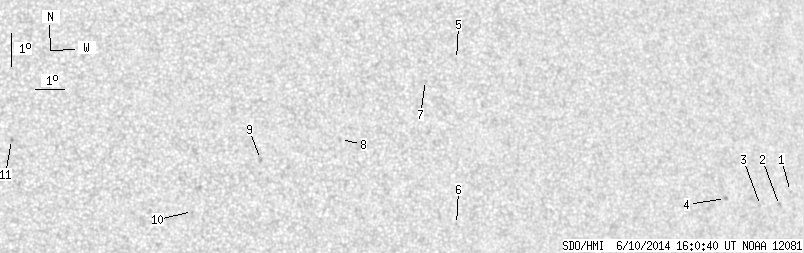

back to the solar disc SDO HMI 2014-06-10 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.61 | 5.17 | 272.76 | 42.86 | 277.09 | 0.6850 | -611.0 | -488.7 | |
| 0.00 | 2.08 | 0.00 | 1.40 | 4.75 | 272.27 | 42.37 | 276.52 | 0.6783 | -590.0 | -558.5 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 4.75 | 271.49 | 41.59 | 276.62 | 0.6682 | -585.0 | -449.7 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 4.98 | 270.08 | 40.19 | 277.14 | 0.6501 | -639.0 | -600.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 9.29 | 260.32 | 30.42 | 287.18 | 0.5251 | 619.0 | 417.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 4.24 | 259.96 | 30.06 | 277.63 | 0.5061 | 736.0 | 575.8 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 8.65 | 259.16 | 29.26 | 286.53 | 0.5061 | 645.0 | 432.9 | |
| 0.00 | 1.99 | 0.00 | 1.11 | 6.86 | 256.07 | 26.18 | 284.36 | 0.4540 | 762.0 | 552.0 | |
| 0.00 | 2.81 | 0.00 | 1.52 | 6.25 | 253.34 | 23.44 | 284.40 | 0.4100 | 843.0 | 640.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 4.68 | 251.03 | 21.13 | 281.63 | 0.3684 | 803.0 | 625.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 6.90 | 245.27 | 15.37 | 293.11 | 0.2874 | 892.0 | 721.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
