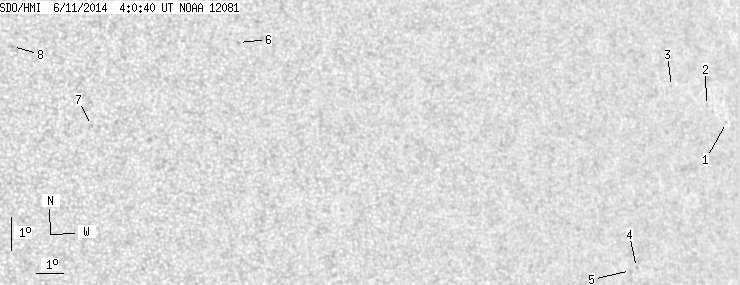

SDO HMI 2014-06-11 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.25 | 0.00 | 6.11 | 3.90 | 263.55 | 40.30 | 276.39 | 0.6428 | -49.2 | -87.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-11 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.56 | 4.26 | 273.37 | 50.11 | 275.09 | 0.7704 | -398.0 | -355.2 | |
| 0.00 | 1.27 | 0.00 | 0.96 | 4.78 | 272.47 | 49.21 | 275.85 | 0.7607 | -561.0 | -493.0 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 5.38 | 270.91 | 47.65 | 276.77 | 0.7433 | -484.0 | -421.2 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -0.13 | 269.06 | 45.81 | 269.29 | 0.7193 | -428.0 | -356.7 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -0.22 | 268.80 | 45.54 | 269.16 | 0.7162 | -489.0 | -340.5 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 6.84 | 253.84 | 30.58 | 282.39 | 0.5192 | 537.0 | 363.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 4.33 | 248.60 | 25.35 | 278.91 | 0.4339 | 688.0 | 598.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 6.75 | 246.06 | 22.81 | 285.80 | 0.4017 | 741.0 | 595.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
