SDO HMI 2014-06-28 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.48 | 191.57 | 171.68 | 583.42 | -10.59 | 268.54 | -79.76 | 101.21 | 0.9863 | 247.3 | 107.8 | |
|
previous
or next observation for the same group /

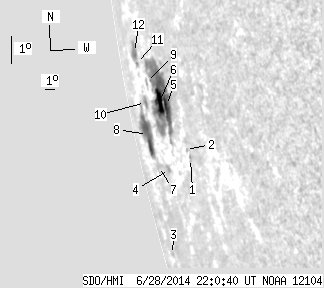

back to the solar disc SDO HMI 2014-06-28 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 4.99 | -11.83 | 272.76 | -75.55 | 102.83 | 0.9731 | -191.0 | -202.5 | |
| 0.00 | 0.64 | 0.00 | 1.38 | -11.56 | 272.33 | -75.97 | 102.52 | 0.9746 | 8.0 | -13.7 | |
| 0.00 | 1.63 | 0.00 | 7.81 | -15.20 | 265.19 | -83.11 | 105.58 | 0.9951 | -204.0 | -119.6 | |
| 0.00 | 2.91 | 0.00 | 8.27 | -12.33 | 269.21 | -79.09 | 103.02 | 0.9854 | -40.0 | -65.3 | |
| 8.17 | 120.57 | 19.92 | 315.36 | -10.26 | 270.80 | -77.50 | 101.05 | 0.9798 | 672.7 | 166.9 | |
| 12.17 | -5.00 | 32.01 | -5.00 | -10.18 | 269.80 | -78.50 | 100.88 | 0.9830 | 257.9 | 999999 | |
| 0.00 | 4.99 | 0.00 | 17.57 | -12.33 | 267.16 | -81.15 | 102.85 | 0.9907 | -35.0 | -111.4 | |
| 25.42 | 38.86 | 102.17 | 157.68 | -11.38 | 266.13 | -82.17 | 101.81 | 0.9928 | 198.5 | 112.1 | |
| 0.00 | 2.27 | 0.00 | 7.07 | -9.67 | 268.06 | -80.25 | 100.23 | 0.9880 | -251.0 | -245.0 | |
| 0.00 | 5.27 | 0.00 | 18.24 | -10.33 | 267.11 | -81.19 | 100.83 | 0.9905 | -37.0 | -84.1 | |
| 0.36 | 12.07 | 1.32 | 45.05 | -9.14 | 266.59 | -81.72 | 99.60 | 0.9915 | 118.2 | 70.2 | |
| 4.36 | -11.00 | 16.26 | -11.00 | -8.80 | 266.53 | -81.78 | 99.25 | 0.9915 | 174.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
