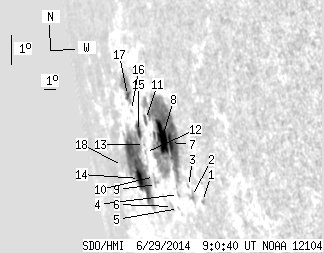

SDO HMI 2014-06-29 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.07 | 323.33 | 85.53 | 616.65 | -10.57 | 268.27 | -73.99 | 101.72 | 0.9657 | 289.3 | 144.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-29 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.96 | -12.11 | 272.58 | -69.68 | 103.81 | 0.9456 | -383.0 | -369.4 | |
| 0.00 | 4.54 | 0.00 | 7.14 | -12.00 | 271.63 | -70.63 | 103.57 | 0.9507 | 404.0 | 304.9 | |
| 0.00 | 1.00 | 0.00 | 1.58 | -11.69 | 271.53 | -70.73 | 103.24 | 0.9510 | 268.0 | 270.1 | |
| 0.00 | 1.36 | 0.00 | 2.30 | -11.99 | 270.35 | -71.91 | 103.41 | 0.9572 | 300.0 | 306.3 | |
| 0.00 | 0.27 | 0.00 | 0.47 | -12.44 | 270.04 | -72.22 | 103.85 | 0.9589 | 269.0 | 276.7 | |
| 0.00 | 2.54 | 0.00 | 4.54 | -12.41 | 269.43 | -72.83 | 103.74 | 0.9618 | -101.0 | -139.2 | |
| 6.27 | 169.98 | 10.35 | 291.07 | -10.35 | 270.55 | -71.71 | 101.73 | 0.9553 | 950.4 | 227.6 | |
| 22.44 | -7.00 | 38.72 | -7.00 | -10.23 | 269.80 | -72.46 | 101.52 | 0.9589 | 421.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 4.38 | -11.78 | 268.11 | -74.15 | 102.94 | 0.9674 | 239.0 | 62.5 | |
| 0.00 | 1.27 | 0.00 | 2.45 | -11.53 | 268.07 | -74.19 | 102.68 | 0.9675 | 213.0 | 160.4 | |
| 1.82 | 3.82 | 3.43 | 7.20 | -9.74 | 268.24 | -74.02 | 100.85 | 0.9659 | -53.3 | -99.8 | |
| 0.00 | 1.18 | 0.00 | 2.34 | -10.80 | 267.53 | -74.73 | 101.88 | 0.9694 | 135.0 | 139.3 | |
| 0.00 | 0.91 | 0.00 | 1.79 | -10.55 | 267.59 | -74.67 | 101.62 | 0.9691 | 126.0 | 159.8 | |
| 7.54 | 109.66 | 16.64 | 238.81 | -11.68 | 266.08 | -76.18 | 102.64 | 0.9755 | -219.8 | 48.8 | |
| 5.27 | -14.00 | 10.67 | -14.00 | -10.17 | 267.13 | -75.13 | 101.18 | 0.9708 | 201.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.90 | -9.53 | 266.69 | -75.57 | 100.49 | 0.9724 | 90.0 | 114.8 | |
| 2.73 | 20.62 | 5.72 | 43.48 | -9.08 | 266.48 | -75.78 | 100.01 | 0.9730 | 338.6 | 171.8 | |
| 0.00 | 2.36 | 0.00 | 6.24 | -11.38 | 263.91 | -78.35 | 102.13 | 0.9829 | 264.0 | 200.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
